The Ercole electric capper by Ferrari is the perfect fit if you are a small microbrewery or an obsessed homebrewer who loves great equipment. Simply plug the unit in and it is ready to use. No compressor needed, which means it is completely silent! The capper is activated by pushing both drive buttons at once, which is a safety feature to keep your fingers out of the way of the capping action. Provides a perfect seal everytime. Made in Italy by Ferrari.
Instructions:
Place the bottle on the base, taking care to align the neck of the bottle and the capping head
Insert the crown cap under the head, a magnet will hold the cap in place
Put both hands on the drive buttons located at the sides
Press both drive buttons simultaneously until the cap is fully attached
As soon as the bottle is capped, release both buttons and remove the bottle
Features:
Caps bottles with max height of 15" (38cm), max diameter of 5.7" (14.5cm)
Includes two capping heads, one for standard American 26mm caps and another for European 29-31mm caps
The European capping head can also be used with smooth or finned plastic T-stoppers
Dimensions: 24.5"H x 7.5"W x 9"D
Weight: 30 lbs
110V
Professional-level wire fastener offers quick and easy manual operation
Adjustable height bottle platform can accomodate bottles from 375 mL up to 9 L in size
High-quality stainless steel construction
Made in Italy by Ferrari
Fasten your wire retainers quickly and easily with the Ferrari Fast Wire Hooding Machine. This professional-level manual wire fastener features an adjustable bottle platform suitable for up to 9L bottles, a bottle centering beam to perfectly line up the bottle neck every time, and boasts solid stainless steel construction throughout. Once your corked bottle is lined up, simply place a retainer on the cork with the eye of the wire hood facing the twisting hook, push the compression lever downward to hold the bottle in place, then hook the wire and rotate the handwheel clockwise three turns to secure the hood under the lip of the bottle.
Compatible with bottle sizes from 375 ml to 9 L
Stainless steel construction
Made in Italy by Ferrari Group
11.8" L x 13.3" W x 37.4" H
The Ercole capper by Ferarri is the pefect fit If you are a small micro or an obsessed homebrewer who loves great equipment. It is pneumatically driven so you will need to supply an air compressor. The capper is actuated by pushing both green buttons at once which is a safety feature to keep your fingers out of the way of the capping action. Made in Italy by Ferrari.
Features
Caps bottles between 7 to 13 inches tall
Two capping heads, one for American standard 26mm and another for European 29-31mm caps.
Dimensions: 23"H x 8"W x 9"D
Requires 125 psi of air at 1 CFM. Comes with 1/8" ID European style air compressor bayonet.
The new Electric Ercole is now available and does not require a compressor. Simply plug it in and it is ready to go! Check out our B497 here.
The Ercole capper by Ferarri is the pefect fit If you are a small micro or an obsessed homebrewer who loves great equipment. It is pneumatically driven so you will need to supply an air compressor. The capper is actuated by pushing both green buttons at once which is a safety feature to keep your fingers out of the way of the capping action. Made in Italy by Ferrari.
Features
Caps bottles between 7 to 13 inches tall
Two capping heads, one for American standard 26mm and another for European 29-31mm caps.
Dimensions: 23"H x 8"W x 9"D
Requires 125 psi of air at 1 CFM. Comes with 1/8" ID European style air compressor bayonet.
The new Electric Ercole is now available and does not require a compressor. Simply plug it in and it is ready to go! Check out our B497 here.
The Ercole capper by Ferarri is the pefect fit If you are a small micro or an obsessed homebrewer who loves great equipment. It is pneumatically driven so you will need to supply an air compressor. The capper is actuated by pushing both green buttons at once which is a safety feature to keep your fingers out of the way of the capping action. Made in Italy by Ferrari.
Features
Caps bottles between 7 to 13 inches tall
Two capping heads, one for American standard 26mm and another for European 29-31mm caps.
Dimensions: 23"H x 8"W x 9"D
Requires 125 psi of air at 1 CFM. Comes with 1/8" ID European style air compressor bayonet.
The new Electric Ercole is now available and does not require a compressor. Simply plug it in and it is ready to go! Check out our B497 here.
Efficient and Easy Corking: Significantly faster and easier to use than handheld or bench-mounted corkers. Compact Storage: Removable legs and lever allow for easy disassembly and storage. Versatile Cork Compatibility: Works with both natural and synthetic corks, including Belgian corks. Acetal resin jaws ensure smooth operation. Adjustable Cork Height: Customize the cork depth with the adjustable nut on the plunger. This Italian-made floor corker offers efficient and easy corking. It features removable legs and a lever for convenient storage, making it significantly faster and easier to use than handheld or bench-mounted models. The unit ships boxed and requires minimal assembly. The adjustable nut on the plunger allows for customization of the cork height within the bottle. Updated in 2023, the corker now features acetal resin jaws (replacing previous brass jaws) and is compatible with both synthetic and natural corks, including Belgian corks. Also available in a welded model that offers added stability (W544). Min. Bottle Height: 9" (230mm) Max. Bottle Height: 15.3" (390mm) Max. Bottle Diameter: 5.5" (140mm) Max. Cork Diameter: 28mm Max. Cork Height: 40mm Assembled Dimensions: 28.9" L x 17.7" W x 35.8" H Made by Ferrari in Italy

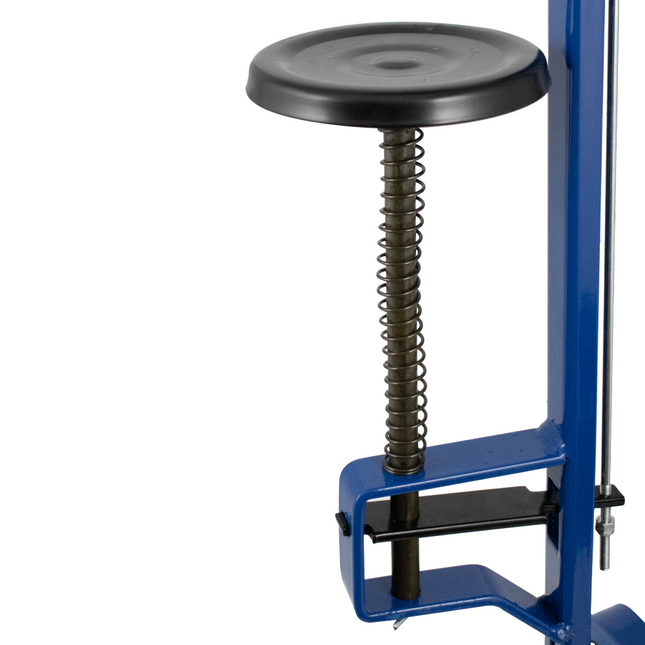

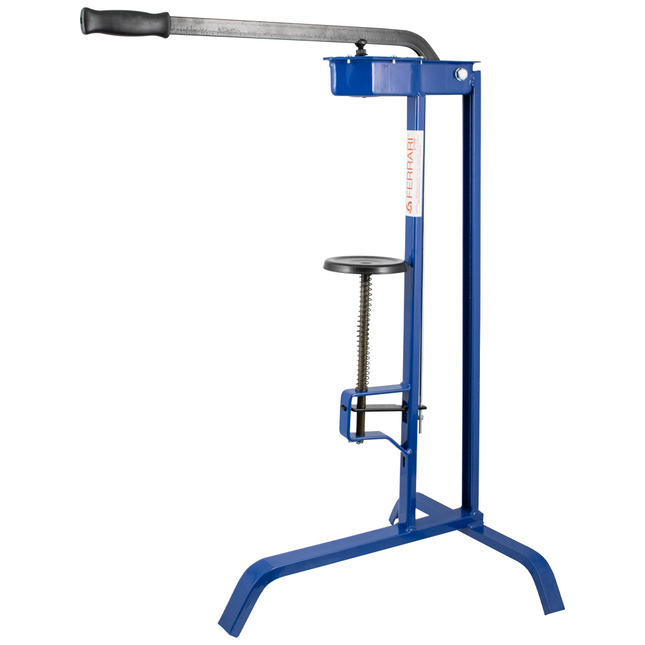

Welded legs and solid lever offer extra stability when corking wine bottles Much easier and faster to use than hand held or bench mounted models Also compatible with Belgian Corks Made in Italy by Ferrari This Italian Floor Corker gives you the leverage you need to easily compress and insert corks in your wine bottles. Much easier and faster to use than hand held or bench mounted models. Ships boxed and requires no assembly. Adjustable nut on plunger allows you to change the height of the cork in the bottle. Works well with our Belgian Corks, too! This unit comes with welded legs and solid lever. Also available in a model that can be broken down for easy storage (W540). Please Note: This corker is not suitable for use with synthetic corks, as the corker will crease the side of the cork during insertion which leads to a leak once the bottle is laid down for storage. See W408 if using synthetic corks. Min. Bottle Height: 9 in. Max. Bottle Height: 15 in. Min. Cork Size: 22x38mm Max. Cork Size: 30x45mm Height: 35.43" Length: 24.8" Width: 17.75" Weight: 17.6 lbs
Welded legs and solid lever offer extra stability when corking wine bottles Much easier and faster to use than hand held or bench mounted models Also compatible with Belgian Corks Made in Italy by Ferrari This Italian Floor Corker gives you the leverage you need to easily compress and insert corks in your wine bottles. Much easier and faster to use than hand held or bench mounted models. Ships boxed and requires no assembly. Adjustable nut on plunger allows you to change the height of the cork in the bottle. Works well with our Belgian Corks, too! This unit comes with welded legs and solid lever. Also available in a model that can be broken down for easy storage (W540). Please Note: This corker is not suitable for use with synthetic corks, as the corker will crease the side of the cork during insertion which leads to a leak once the bottle is laid down for storage. See W408 if using synthetic corks. Min. Bottle Height: 9 in. Max. Bottle Height: 15 in. Min. Cork Size: 22x38mm Max. Cork Size: 30x45mm Height: 35.43" Length: 24.8" Width: 17.75" Weight: 17.6 lbs
Welded legs and solid lever offer extra stability when corking wine bottles Much easier and faster to use than hand held or bench mounted models Also compatible with Belgian Corks Made in Italy by Ferrari This Italian Floor Corker gives you the leverage you need to easily compress and insert corks in your wine bottles. Much easier and faster to use than hand held or bench mounted models. Ships boxed and requires no assembly. Adjustable nut on plunger allows you to change the height of the cork in the bottle. Works well with our Belgian Corks, too! This unit comes with welded legs and solid lever. Also available in a model that can be broken down for easy storage (W540). Please Note: This corker is not suitable for use with synthetic corks, as the corker will crease the side of the cork during insertion which leads to a leak once the bottle is laid down for storage. See W408 if using synthetic corks. Min. Bottle Height: 9 in. Max. Bottle Height: 15 in. Min. Cork Size: 22x38mm Max. Cork Size: 30x45mm Height: 35.43" Length: 24.8" Width: 17.75" Weight: 17.6 lbs
Twin lever wing corker for corking wine bottles. The Easy corker has a unique spring mechanism that grabs the neck of the bottle and holds tight while the cork is inserted. Insert a cork into the plastic window and lower the handles. The depth of the cork can be adjusted by moving the 2 nuts on the top of the threaded shaft. Patented design made by Ferrari in Italy.
No more spillovers! Set your desired volume and walk away
Automatically collect water while you tend to other tasks
Great for collecting brewing water or mixing your cleaning and sanitizing chemicals
Illuminated display in splash resistant housing
Integrated solenoid valve cuts off flow when your set volume is dispensed
1/2" BSP inlet and outlet work well with Duotight or Type A Camlock fittings
Unlike other hose timers that simply measure time, the Fill-O-Meter measures volume and will automatically turn off when the programmed volume of water is dispensed. Enter your desired volume of water, press Start, and tend to other brew day prep work. Install in-line with your water filter to automatically collect filtered strike water, or measure out how much water you need to mix with cleaning chemicals for a precise dilution ratio.
We recommend setting up the Fill-O-Meter with either Duotight fittings or Type A Camlocks. Thread tape will be required for the Camlock. Use sparingly as too much plumber's tape can damage the plastic thread. And it is very important to never overtighten!
Displays real time flow rate and volume (Liters/Min or Gallons/Min)
Accurately measures and controls volumes at flow rates from 1-30L/Min (0.26-7.9Gal/Min)
Never overfill or spillover again
Splash resistant housing
Great for filling tanks, brewing kettles, distilling gear, mixing liquid and many other applications
Integrated flow meter and solenoid valve
Illuminated display for usage in the evening
Integrated sound alarm
Easy 1/2" BSP Inlet and Outlet
Automatic failsafe - flow is stopped if the unit loses power
Important Notes:
DO NOT flow liquid the wrong direction, it will break the unit.
DO NOT overtighten fittings onto the 1/2" ports.
DO NOT exceed temperatures greater than 104°F (40°C) through the unit.
Specifications:
Flow Range: 1-30L per minute
Temperature Range: 32-104°F (0-40°C)
LCD: 3 inch back lit display
Housing Material: ABS
Input/Output threads: BSP 1/2"
Pressure Rating: 0-12bar (0-180psi)
Accuracy: +/- 5%
Please Note: Accuracy can be improved with stable flow. Repeated start/stop or variation in water supply can have negative effect on accuracy. If you are noticing innaccurate fill levels, see the instruction manual for calibration instructions.
KegLand Part Number: KL14694
Clean in place with this filling and cleaning lid for FD-Style Speidel Fermenters.
Just attach CIP Spray Ball (included) and pump hot water through to clean your fermenters.
Use to maximize aeration when transferring wort into your tank. Generally speaking this lid is pretty sweet!
1" MPT inlet w/ 1" Pipe
Keep hops and other flavoring additions in your fermenter where they belong. This filter attachment can be attached to the X-Series Uni Pressure Pack's floating dip tube to prevent vegetal matter and other solids from being pulled into the dip tube. This first line of defense makes the floating dip tube even more effective at transferring only the clearest beer possible from your conical to your keg. Simply remove the metal tube from the ball float, slip the silicone tubing over the barb, then reattach the ball float to one of three clip locations. Made from HDPE and 304 stainless steel, the filter can be boiled or sanitized with the full range of cleaners that we sell. The plastic HDPE is over molded onto the stainless mesh to make a seamless finish. The end cap can easily pop off for cleaning.
Having trouble loosening the lid of your 10" filter housing (FIL32A)? This spanner wrench will make it much easier. Our BevBright® filters require a tight seal of the lid onto the filter and this wrench is specifically designed to fit our 10" filter housing.
This small filter should be used inline before a 1 in. solenoid valve to protect it from damage from particulates.
Example image shows 3/4" solenoid filer.
Transfer the clearest beer possible from first pint to last with this Filtered Racking Buoy!
Stainless steel float allows you to pull liquid from the top of your vessel rather than transferring out from the bottom
Sediment falls out of suspension over time, especially at cold temperatures, so the clearest beer is always at the top!
10 feet of tubing can be cut to your preferred length for both the pump inlet and outlet
Made for use with transfer pumps that featyre 3/8" to 1/2" barbs
The Filtered Racking Buoy kit allows you to transfer the clearest liquid possible with your transfer pump. Whether you're transferring beer or wine, the clearest liquid will always be at the top of the vessel as solids fall out of suspension and settle to the bottom over time. The stainless steel float will position your transfer tubing at the top of the liquid so you can pull from the top down and cease transferring when you get near the sediment. The filter attachment will add a layer of protection for the pump and will leave solids behind in your fermenter or storage tank.
Includes:
Stainless float (1.75")
Filter attachment
10' length of 3/8" ID silicone tubing
(3) hose clamps
The best way to filter wine at home! Push wine from one keg through a plate filter and into another keg. No pumping, no oxidation, and total control over flow rates. The system can be expanded as needed by adding kegs or additional filter housings. All materials that come in contact with the wine are either stainless steel or food-grade, FDA-approved plastic or rubber. Kegs can be used for wine storage, and the gas system can be used anywhere a blanket of inert gas is needed. Complete filtering system includes one Nitrogen tank, dual gauge Nitrogen regulator, gas line assembly, two 5.5 gallon kegs and our FIL45B Wine & Beer Plate Filtering Kit. The kit includes a set of FIL46 Rough Filter Sheets. Additional sheets and sheets in other micron ratings can be selected from the You Might Also Need section below. Please Note:The Nitrogen tank is shipped empty and will need to be filled at your local welding supply shop. This kit will come with refurbished or converted Ball Lock Kegs
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
What is the PES Layer?
The Polyethersulfone (PES) layer is a high-performance membrane designed to deliver absolute filtration and exceptional product clarity.
Key Benefits for Beverage Production
Absolute Filtration: The PES layer provides a precise and reliable barrier, capturing 99.99% of haze-forming particles, yeast, and bacteria to guarantee a consistent, sparkling final product.
Maintains Quality: With its low protein-binding properties, the PES membrane ensures that the color, flavor, and aroma of your beverage remain unchanged.
Durable & Efficient: Resistant to high temperatures and chemicals, this layer is built for demanding production environments. Its high flow rate and large dirt-holding capacity extend the life of each cartridge, reducing downtime and replacement costs.
Specs:
Clarox® MP/W 04
Retention Rate: 0.45 Micron
Bacterial Retention: >1.0 × 1010/cm2
Leuconostoc oenos
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate: 198 gal/h/30" (750 L/h/30")
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® MP/W 06
Retention Rate: 0.65 Micron
Bacterial Retention: >1.0 × 1011/cm2
Saccharomyces cerevisiae
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate: 198-277 gal/h/30" (750-1050 L/h/30")
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® PL 10
Retention Rate: 1.0 Micron
Efficiency: 99.98%
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate:
Beer: 160 gal/h/30" (605 L/hr/30")
Wine: 240 gal/h/30" (908 L/hr/30")
Water: 660 gal/h/30" (2,498 L/hr/30")
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® PL 30
Retention Rate: 3.0 Micron
Efficiency: 99.98%
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate:
Beer: 400 gal/h/30" (1,514 L/hr/30")
Wine: 530 gal/h/30" (2,006 L/hr/30")
Water: 920 gal/h/30" (3,482 L/hr/30")
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
Designed for exceptional clarity and stability in beverage production, Filtrox 30" filter cartridges offer a high-performance solution for small to large-scale operations. Engineered with a large filtration surface area and robust construction, these cartridges are ideal for critical stages like pre-filtration and polishing of wine, beer, spirits, juices, and more. Filtrox cartridges ensure the removal of haze-forming particles and yeast, leading to a sparkling final product with a longer shelf life and maintained flavor integrity.
Specs:
Clarox® PL 50
Retention Rate: 5.0 Micron
Efficiency: 99.98%
Maximum Pressure Differential: 72.5 psi (5 Bar) @ 77°F (25°C)
Maximum Continuous Operating Temperature: 149°F (65°C)
Typical Flow Rate:
Beer: 400 gal/h/30" (1,514 L/hr/30")
Wine: 530 gal/h/30" (2,006 L/hr/30")
Water: 920 gal/h/30" (3,482 L/hr/30")
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers 0.5 Micron pads remove 99.999% of bacteria to promote sterility in the bottle Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 20cm x 20cm filter pads made for 20x20 plate filters. Pads rated 0.5 micron remove 99.999% of bacteria. This pad is the right choice when you want to promote sterility in the bottle, although do please note that the pad does not remove 100% of bacteria - only a cartridge filter can do so. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.4 - 0.6 Micron Mid Point: 0.5 Fibrafix AF 130 Filter Sheets
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers 0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 20cm x 20cm filter pads made for 20x20 plate filters. 0.7 micron pads are for ultra-fine polishing of the wine, or for preparing hard to filter wines to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.5 - 0.8 Micron Mid Point: 0.7 Versafix XE 104 Filter Sheets
Due to high demand, the 100 pack is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid August.
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
11 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 11 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 5 - 18
Micron Mid Point: 11
Versafix XE 24 Filter Sheets
Due to high demand, the 100 sheet qty is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid August.
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
4 Micron rating are for general polishing of wines that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 4 micron pads are for general polishing of wines that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Versafix XE 44 Filter Sheets
Due to high demand, the 100 sheet is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
20 cm x 20 cm filter pads fit all standard 20x20 plate filters, which are typically used by home winemakers
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
20cm x 20cm filter pads made for 20x20 plate filters. 6 micron pads are considered to be a "rough" filtration and are typically used to prepare the wine to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on the winemaker's tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of wine that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Versafix XE 34 Filter Sheets
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 0.5 Micron pads remove 99.999% of bacteria to promote sterility in the bottle Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. Pads rated 0.5 micron remove 99.999% of bacteria. This pad is the right choice when you want to promote sterility in the bottle, although do please note that the pad does not remove 100% of bacteria - only a cartridge filter can do so. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.4 - 0.6 Micron Mid Point: 0.5 Fibrafix AF 130 Filter Sheets Wine Use: General sterile filtration Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Fruit Wine or Fruit Juice Use: Cold sterile filtration of fruit juice Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Beer Use: Yeast and bacteria removal Max. Recommended Flow Rate: 5 gal/hr (19 L/hr) Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 0.7 Micron for ultra-fine polishing of beverages or for preparing hard to filter beverages to go through a sterile cartridge filter Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. 0.7 micron pads are for ultra-fine polishing of the beverage, or for preparing hard to filter beverages to go through a sterile cartridge filter. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 0.5 - 0.8 Micron Mid Point: 0.7 Versafix XE 104 Filter Sheets Wine Use: Ultra-fine polishing Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 17 psi (1.2 Bar) Cold Brew Coffee Use: Very fine filtration Max. Recommended Flow Rate: 15 gal/hr (56 L/hr) Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Due to high demand, some of these items are currently out of stock but available for pre-order. Please check status notes below when selecting a size option to see if it is In Stock or tagged as PreBook. We will automatically ship this to you when we receive more inventory.
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
10 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer pads will clog without prefiltering
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 10 micron pads are considered to be a "rough" filtration and are typically used to prepare the beverage to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Versafix XE 24 Filter Sheets
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 21-30 gal/hr (80-112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Due to high demand, the box of 100 is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this to you when we receive more inventory.
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications
2 Micron rating are for general polishing of beverages that do not need to be sterile filtered
Easily sterilizable via heat or steam
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
40cm x 40cm filter pads made for 40x40 plate filters. 2 micron pads are for general polishing of beverages that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through.
The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened.
Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering.
Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3.0
Micron Mid Point: 2
Versafix XE 64 Filter Sheets
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 26 gal/hr (96 L/hr)
Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 6.5 gal/hr (24 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 30 gal/hr (112 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 21 gal/hr (80 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 4 Micron rating are for general polishing of beverages that do not need to be sterile filtered Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. 4 micron pads are for general polishing of beverages that do not need to be sterile filtered. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 3 - 6 Micron Mid Point: 4 Versafix XE 44 Filter Sheets Wine Use: Clarifying filtration Max. Recommended Flow Rate: 26 gal/hr (96 L/hr) Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar) Fruit Wine or Fruit Juice Use: Clarifying filtration Max. Recommended Flow Rate: 21 gal/hr (80 L/hr) Max. Recommended Pressure Differential: 22-36 psi (1.5-2.5 Bar) Beer Use: Middle fine filtration, with only a few yeast Max. Recommended Flow Rate: 8.5 gal/hr (32 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
40 cm x 40 cm filter pads fit all standard 40x40 plate filters, which are typically used in professional applications 6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration Rough filtration is necessary on beverages with heavy sedimentation as the finer pads will clog without prefiltering Easily sterilizable via heat or steam Manufactured by Filtrox, the world's leading producer of high-quality filtration media 40cm x 40cm filter pads made for 40x40 plate filters. 6 micron pads are considered to be a "rough" filtration and are typically used to prepare the beverage to be filtered by finer pads, usually either 2-3 micron or 1.5 micron depending on tastes and objectives. Please note that all pad filters are rated 'nominal', meaning that about 90-95% of all particulate matter at the micron rating will be filtered out. There will always be a little bit of smaller material that is also filtered out, as well as some larger material that will make it through. The filters can be sterilized by in-line steam, auto-claving, dry heat, hot water or chemical methods. We choose to run Saniclean solution through the pads followed by sterile water or a small amount of beverage that is then discarded. After the solution is run through the pads, and the pads have softened, the filter will need to be re-tightened. Each pad has an entry side and an exit side, distinguishable by their different textures. The entry side is a billowy type texture, frequently called the "rough" side; and the exit side has a crosshatch pattern and is commonly called the "smooth" side. For more information on how to load filter sheets into your plate and frame filter, see our Guide to Plate Filtering. Filtrox Group is a producer of filter sheets for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter sheets are manufactured of specially selected raw materials and conform to FDA and FCC regulations. Micron Rating: 4 - 9 Micron Mid Point: 6 Versafix XE 34 Filter Sheets Wine Use: Clarifying filtration Max. Recommended Flow Rate: 26 gal/hr (96 L/hr) Max. Recommended Pressure Differential: 29-36 psi (2.0-2.5 Bar) Fruit Wine or Fruit Juice Use: Clarifying filtration Max. Recommended Flow Rate: 21 gal/hr (80 L/hr) Max. Recommended Pressure Differential: 22-36 psi (1.5-2.5 Bar) Beer Use: Clarifying filtration of beer, visually clear Max. Recommended Flow Rate: 13-15 gal/hr (48-56 L/hr) Max. Recommended Pressure Differential: 22 psi (1.5 Bar) Cold Brew Coffee Use: Clarifying filtration Max. Recommended Flow Rate: 21 gal/hr (80 L/hr) Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
0.45 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Fibradisc AF 130 Filter Module
Wine
Use: General sterile filtration
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Fruit Wine or Fruit Juice
Use: Cold sterile filtration
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Beer
Use: Yeast and bacteria removal
Max. Recommended Flow Rate: 57 gal/hr (216 L/hr)
Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
Please Note: The filter module, lacking a PES layer, is for clarification purposes only and does not provide sterile filtration for 100% bacteria removal.
12" filter module for use with 12" stainless steel lenticular filter housings
0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 0.8
Micron Mid Point: 0.7
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 104 Filter Module
Wine
Use: Sterile filtration dry wine
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 17 - 22 psi (1.2 - 1.5 Bar)
Cold Brew Coffee
Use: Very fine, sterile filtration
Max. Recommended Flow Rate: 167 gal/hr (630 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 24 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 239 - 334 gal/hr (900 - 1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3
Micron Mid Point: 2
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 64 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 286 gal/hr (1,080 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 71 gal/hr (270 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
4 Micron rating are for general clarifying of beverages that do not need to be sterile filtered
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 44 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 286 gal/hr (1,080 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 95 gal/hr (360 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
12" filter module for use with 12" stainless steel lenticular filter housings
6 Micron rating provides a rough filtration that removes large particulates, often followed by a finer filtration
Rough filtration is necessary on wines with heavy sedimentation as the finer pads will clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 4 - 9
Micron Mid Point: 6
Filtration Area: 19.3 ft² (1.8 m²)
Number of Lenses: 16
Versadisc XE 34 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 286 gal/hr (1,080 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Clarifying filtration of beer, visually clear
Max. Recommended Flow Rate: 143 - 167 gal/hr (540 - 630 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Cold Brew Coffee
Use: Clarifying filtration
Max. Recommended Flow Rate: 239 gal/hr (900 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
0.45 Micron pads remove 99.999% of bacteria to promote sterility in the bottle
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.4 - 0.6
Micron Mid Point: 0.5
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Fibradisc AF 130 Filter Module
Wine
Use: General sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Fruit Wine or Fruit Juice
Use: Cold sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 psi (1.2 Bar)
Beer
Use: Yeast and bacteria removal
Max. Recommended Flow Rate: 114 gal/hr (432 L/hr)
Max. Recommended Pressure Differential: 15 psi (1.0 Bar)
Please Note: The filter module, lacking a PES layer, is for clarification purposes only and does not provide sterile filtration for 100% bacteria removal.
16" filter module for use with 16" stainless steel lenticular filter housings
0.7 Micron for ultra-fine polishing of wine or for preparing hard to filter wines to go through a sterile cartridge filter
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 0.5 - 0.8
Micron Mid Point: 0.7
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 104 Filter Module
Wine
Use: Sterile filtration dry wine
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 17 - 22 psi (1.2 - 1.5 Bar)
Cold Brew Coffee
Use: Very fine, sterile filtration
Max. Recommended Flow Rate: 334 gal/hr (1,260 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
10 Micron rating provides a rough filtration that removes large particulates, often followed by finer filtration
Rough filtration is necessary on beverages with heavy sedimentation as the finer modules may clog without prefiltering
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 6 - 15
Micron Mid Point: 10
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 24 Filter Module
Wine
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Fruit Wine or Fruit Juice
Use: Prefiltration
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Spirits
Use: Coarse filtration of liquors, spirits
Max. Recommended Flow Rate: 478 - 668 gal/hr (1,800 - 2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
2 Micron rating are for general clarifying of wine and fine filtration of beer, seltzer and cold brew
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 1.5 - 3
Micron Mid Point: 2
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 64 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Spirits
Use: Fine filtration of cognac and whiskey chill haze removal
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Beer
Use: Fine filtration, with fewer yeast cells
Max. Recommended Flow Rate: 142 gal/hr (540 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
Seltzer
Use: Fine filtration of seltzer base
Max. Recommended Flow Rate: 668 gal/hr (2,520 L/hr)
Max. Recommended Pressure Differential: 36 psi (2.5 Bar)
Cold Brew Coffee
Use: Fine filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 29 psi (2.0 Bar)
16" filter module for use with 16" stainless steel lenticular filter housings
4 Micron rating are for general clarifying of beverages that do not need to be sterile filtered
Manufactured by Filtrox, the world's leading producer of high-quality filtration media
Filtrox filter modules are high-performance filtration solutions designed for use with stainless steel lenticular filter housings. These modules deliver reliable, efficient filtration for a wide range of liquids in food and beverage production including wine, beer, cider, spirits, cold brew coffee, and more.
Compared to plate filters and filter sheets, lenticular filter housings and filter modules offers an airtight, sealed system with no dripping or leakage, ensuring your liquid remains protected and uncontaminated.
Filter modules are easy to install and provide consistent results, making them ideal for demanding filtration applications.
Filtrox Group is a producer of filter media for applications in the food and beverage industry as well as in the pharmaceutical and chemical industry. These filter modules are manufactured of specially selected raw materials and conform to FDA and FCC regulations.
Micron Rating: 3 - 6
Micron Mid Point: 4
Filtration Area: 38.7 ft² (3.6 m²)
Number of Lenses: 16
Versadisc XE 44 Filter Module
Wine
Use: Clarifying filtration
Max. Recommended Flow Rate: 572 gal/hr (2,160 L/hr)
Max. Recommended Pressure Differential: 29 - 36 psi (2.0 - 2.5 Bar)
Fruit Wine or Fruit Juice
Use: Clarifying filtration
Max. Recommended Flow Rate: 478 gal/hr (1,800 L/hr)
Max. Recommended Pressure Differential: 22 - 36 psi (1.5 - 2.5 Bar)
Beer
Use: Middle fine filtration, with only a few yeast
Max. Recommended Flow Rate: 190 gal/hr (720 L/hr)
Max. Recommended Pressure Differential: 22 psi (1.5 Bar)
