The Ultimate BrewZilla Combo Pack! Get the Gen 4 BrewZilla & our most highly recommended accessories at an unbeatable price!
Includes all of our favorite accessories for the BrewZilla including the Neoprene Jacket to speed up heating times, Hop Spider to keep vegetal matter out of your wort, and Chilling Connection Kit so you're ready to use the Immersion Chiller out of the box
We think all BrewZilla brewers will eventually upgrade their systems with these accessories, so buy them together and reap the savings!
Also available in 220V (AG583)
Combo Pack Includes:
BrewZilla Brewing System | Gen 4 | 9.25G | 110V
Neoprene Jacket
Hop Spider
Wort Chiller Connection Kit
Gen 4 BrewZilla All-in-One Brewing System
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
110-120V power and plug
12.5A
Requires 20A circuit
Dual heating elements (1000 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 110–120V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
Elevate your brewing game with the Gen 4 BrewZilla. This cutting-edge system combines innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain -- get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don't overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you'd prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you'll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you'll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone -- all of the data from your brew is automatically logged to your portal profile. This information doesn't just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn't just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone's web browser. Not sure when you'll be home from work or your kid's ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We've all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there's more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you'll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller's firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery's grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you'll be able to extract every last drop of wort to your fermenter. If you've brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you'll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you'll find on the controller is adjusting the pump flow. This doesn't control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it's an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you'll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don't have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We've been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it's also offered at an incredibly competitive price point when compared to other systems. You'll get all of the cutting edge Bluetooth technology you'd get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that's yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you'll need to spend another $100 for the recirculation pump kit. What's more, no other system in the same 'weight class' has the same grain capacity. And if the standard capacity isn't quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you're investing in a top shelf system and all of the critical features you're expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
110-120V power and plug
12.5A
Requires 20A circuit
Dual heating elements (1000 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 110–120V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL3276
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
This smaller Bordeaux bottle offers the classic shape in a size that's half the volume
Antique green glass color is often preferred for red wines to protect them from light during long term storage
Farro Glass offers a full lineup of the most essential and commonly used bottles in winemaking
A half volume option for the most popular wine bottle in the world. As the name suggests, the Bordeaux bottle (also known as a Claret bottle) originates from the Bordeaux region of France. Easily identified by its wide shoulders and straight body, this bottle style comes in a variety of colors and is suitable for a myriad of wine styles. Brown and dark green are commonly used for reds to protect them from light during long storage periods, while light green and flint are most often used only for white wines that will be consumed much sooner after bottling. These 375 mL bottles are excellent for pricier beverages, or when you want to make sure you're going to finish the bottle without having to open a full 750 mL bottle.
Volume: 375 mL
Style: Bordeaux / Claret
Use: Sangiovese, Tempranillo, Merlot
Color: Antique Green
Finish: Cork
Bottom: Punted
Case QTY: 24
Pallet QTY: 84 cases
Our Farro Glass Wine Bottles offers a full lineup of the most essential and commonly used bottles in winemaking. We scoured the world to find a bottle source that could provide a quality product consistently and at a fair price that we can pass on to our customers. If you've been searching for reasonably priced bottles that are reliably in stock, look no further.
Dark Malt Extract made specifically for brewing the darkest beer styles including Porter and Stout
Contributes an intensely malty flavor and dark color
Made from 2-Row, Munich, Caramel 60, and Black Malt
Can be used as 100% of your fermentable sugar in extract brewing
Add for color correction, boost gravity, or improve head retention in all grain brewing
A dark malt extract fantastic for the production of Porter, Stouts, or any other dark beer. Made from a mix of Base Malt, Munich, Caramel 60, and Black Malt, this extract will make an amazingly rich wort. Use it in any beer that you’re looking for an intensely malty flavor along with a dark color.
Packaged in oxygen barrier foil bags that keep the extract from oxidizing. Does fresh extract make a difference ...decide for yourself!
We recommend customers store their extract in the refrigerator if they do not plan on using it within 8 weeks.
Replacement o-ring for the racking arm included with the KegLand Bucket Buddy stainless fermenter.
Single o-ring. If you are replacing both o-rings, you will need to order 2.
KegLand Part Number: KL24754
This heavy-duty mash paddle will rip through your mash tun like slicing through butter with a light saber! Drilled holes provide less resistance when breaking up dough balls. Tig welded and made from 304 stainless steel.
The paddle is 76cm (29.9") in total length with a paddle head measurement of 23cm x 14cm (9" x 5.5").
KegLand Part Number: KL03797
Elevate your brewing game with the 220V Gen 4 BrewZilla. This cutting-edge system combines more power with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch!
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA 6-30P plug
Requires NEMA 6-30R receptacle
Requires 11 amps from 30 amp circuit
Dual heating elements (1900 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
You Will Need:
2' of H985 1/2" ID Silicone tubing for sparging and draining.
To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508).
These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL27434
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
RAPT Gen 4 BrewZilla | User Manual
The Ultimate BrewZilla Combo Pack! Get the Gen 4 BrewZilla & our most highly recommended accessories at an unbeatable price! Includes all of our favorite accessories for the BrewZilla including the Neoprene Jacket to speed up heating times, Hop Spider to keep vegetal matter out of your wort, and Chilling Connection Kit so you're ready to use the Immersion Chiller out of the box We think all BrewZilla brewers will eventually upgrade their systems with these accessories, so buy them together and reap the savings! Also available in 110V (AG581)
Combo Pack Includes: BrewZilla Brewing System | Gen 4 | 9.25G | 220V Neoprene Jacket Hop Spider Wort Chiller Connection Kit Gen 4 BrewZilla All-in-One Brewing System WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet WiFi/Bluetooth Enabled RAPT Controller The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen. But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability. And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer! But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings. Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road. High Capacity Malt Pipe With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency. Concave Base with Center Draining Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind. Ultra Low Watt Density Elements The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy. Easy Access Built-In Pump The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet. If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer. MoreBeer!'s Final Word We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included. Perfect for Distillation If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find. Features: Gen 4.1 Stainless steel construction 9 gallon total capacity with a finished beer output of 5-6 gallons WiFi/Bluetooth Enabled RAPT digital temperature controller Automatic step mashing with 6 programmable stages 220-240V power NEMA 6-30P plug Requires NEMA 6-30R receptacle Requires 11 amps from 30 amp circuit Dual heating elements (1900 watts and 500 watts) Stainless steel 1/2" ball valve for gravity draining or transferring via pump Immersion wort chiller included Stainless steel malt pipe/basket Stamped in volume markers Glass lid Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning Recirculation arm PPSU sight glass Bottom handle for easy lifting and pouring Rubber feet Temperature reads in °F or °C Approximately 32.75" H (with recirculation arm) x 12.5" D Recommended max. grain bill: 23.5 lbs AlcoEngine Still ready with the purchase of a Distillation Lid Pump Specs: Max Capacity: 2.9–3.1 gal/min Max Head: 4.9–6.8 ft. Poles: 2 Voltage: 220–240V-AC Frequency: 50–60Hz Power: 6 watts Current: 60 mA Speed: 2600–3000rpm Duty Cycle: Continuous Capacitor: 2µF Input/Output: 13mm barb Water Resistance: IPX2 Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos. Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe. Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged. Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use. 35L (110V) 35L (220V) 65L (220V) 100L (220V) 10 ft. 14 Gauge 14 Gauge 12 Gauge 10 Gauge 25 ft. 14 Gauge 14 Gauge 12 Gauge 10 Gauge 50 ft. 12 Gauge 12 Gauge 10 Gauge 8 Gauge
Elevate your brewing game with the 220V Gen 4 BrewZilla. This cutting-edge system combines more power with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch! WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet WiFi/Bluetooth Enabled RAPT Controller The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen. But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability. And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer! But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings. Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road. High Capacity Malt Pipe With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency. Concave Base with Center Draining Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind. Ultra Low Watt Density Elements The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy. Easy Access Built-In Pump The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet. If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer. MoreBeer!'s Final Word We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included. Perfect for Distillation If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find. Features: Gen 4.1 Stainless steel construction 9 gallon total capacity with a finished beer output of 5-6 gallons WiFi/Bluetooth Enabled RAPT digital temperature controller Automatic step mashing with 6 programmable stages 220-240V power NEMA 6-30P plug Requires NEMA 6-30R receptacle Requires 11 amps from 30 amp circuit Dual heating elements (1900 watts and 500 watts) Stainless steel 1/2" ball valve for gravity draining or transferring via pump Immersion wort chiller included Stainless steel malt pipe/basket Stamped in volume markers Glass lid Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning Recirculation arm PPSU sight glass Bottom handle for easy lifting and pouring Rubber feet Temperature reads in °F or °C Approximately 32.75" H (with recirculation arm) x 12.5" D Recommended max. grain bill: 23.5 lbs AlcoEngine Still ready with the purchase of a Distillation Lid Pump Specs: Max Capacity: 2.9–3.1 gal/min Max Head: 4.9–6.8 ft. Poles: 2 Voltage: 220–240V-AC Frequency: 50–60Hz Power: 6 watts Current: 60 mA Speed: 2600–3000rpm Duty Cycle: Continuous Capacitor: 2µF Input/Output: 13mm barb Water Resistance: IPX2 You Will Need: 2' of H985 1/2" ID Silicone tubing for sparging and draining. To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508). These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL27434 Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos. Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe. Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged. Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use. 35L (110V) 35L (220V) 65L (220V) 100L (220V) 10 ft. 14 Gauge 14 Gauge 12 Gauge 10 Gauge 25 ft. 14 Gauge 14 Gauge 12 Gauge 10 Gauge 50 ft. 12 Gauge 12 Gauge 10 Gauge 8 Gauge
Elevate your brewing game with the 220V Gen 4 BrewZilla. This cutting-edge system combines more power with innovative features like wireless connectivity via WiFi & Bluetooth, allowing you to heat faster while you control and monitor your brew day, ensuring precision, convenience, and exceptional beer batch after batch! WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet WiFi/Bluetooth Enabled RAPT Controller The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen. But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability. And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer! But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings. Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road. High Capacity Malt Pipe With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency. Concave Base with Center Draining Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind. Ultra Low Watt Density Elements The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy. Easy Access Built-In Pump The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet. If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer. MoreBeer!'s Final Word We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included. Perfect for Distillation If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find. Features: Gen 4.1 Stainless steel construction 9 gallon total capacity with a finished beer output of 5-6 gallons WiFi/Bluetooth Enabled RAPT digital temperature controller Automatic step mashing with 6 programmable stages 220-240V power NEMA 6-30P plug Requires NEMA 6-30R receptacle Requires 11 amps from 30 amp circuit Dual heating elements (1900 watts and 500 watts) Stainless steel 1/2" ball valve for gravity draining or transferring via pump Immersion wort chiller included Stainless steel malt pipe/basket Stamped in volume markers Glass lid Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning Recirculation arm PPSU sight glass Bottom handle for easy lifting and pouring Rubber feet Temperature reads in °F or °C Approximately 32.75" H (with recirculation arm) x 12.5" D Recommended max. grain bill: 23.5 lbs AlcoEngine Still ready with the purchase of a Distillation Lid Pump Specs: Max Capacity: 2.9–3.1 gal/min Max Head: 4.9–6.8 ft. Poles: 2 Voltage: 220–240V-AC Frequency: 50–60Hz Power: 6 watts Current: 60 mA Speed: 2600–3000rpm Duty Cycle: Continuous Capacitor: 2µF Input/Output: 13mm barb Water Resistance: IPX2 You Will Need: 2' of H985 1/2" ID Silicone tubing for sparging and draining. To connect included Chiller: (20') of D1710 1/2" ID beverage tubing (or whatever length required, (3) H950hose clamps and (1) brass hose by thread adaptor (H508). These items come in the Wort Chiller Connection Kit, add the kit to your cart and use code ZILLAKIT at checkout.
KegLand Part Number: KL27434 Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos. Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe. Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged. Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use. 35L (110V) 35L (220V) 65L (220V) 100L (220V) 10 ft. 14 Gauge 14 Gauge 12 Gauge 10 Gauge 25 ft. 14 Gauge 14 Gauge 12 Gauge 10 Gauge 50 ft. 12 Gauge 12 Gauge 10 Gauge 8 Gauge
The Ultimate Grain to Glass Combo Pack! Get the Gen 4 BrewZilla & FermZilla Easy-Grip Tri-Conical with all the best accessories at an unbeatable price!
Brew extract or all grain batches on the BrewZilla; ferment, carbonate, and serve from the FermZilla. Everything you need from Grain to Glass!
Comes with all of the most highly recommended accessories for the BrewZilla, including the Neoprene Jacket to speed up heating times, Hop Spider to keep vegetal matter out of your wort, and Chilling Connection kit so you're ready to use the Immersion Chiller out of the box
Includes some of our favorite accessories for the FermZilla, such as the Pressure Kit with Floating Dip Tube so you're always racking the clearest beer and the Duotight BlowTie 2 for pressure fermentations and flow control keg transfers
Over $100 savings when purchasing this kit bundle compared to buying everything piece-by-piece!
Also available in 110V (AG580)
You can search high and low, but you won't find a better deal than the BrewZilla Ultimate Grain to Glass Combo Pack!
Combo Pack Includes:
BrewZilla Brewing System | Gen 4.1 | 9.25G | 220V
Neoprene Jacket
Hop Spider
Wort Chiller Connection Kit
FermZilla Tri-Conical Fermenter | Gen 3.2 | 7.1G
Plastic Pressure Kit w/ Floating Dip Tube
Duotight BlowTie 2 Spunding Valve
Insulating Jacket
Gen 4 BrewZilla All-in-One Brewing System
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
220-240V power
NEMA 6-30P plug
Requires NEMA 6-30R receptacle
Requires 11 amps from 30 amp circuit
Dual heating elements (1900 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 220–240V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
FermZilla Tri-Conical Easy-Grip Fermenter
A best seller for a reason! Tons of features at an incredible cost
Crystal Clear super smooth PET makes fermenting and cleaning super easy
3" Butterfly valve at bottom makes removing yeast/trub easy with the 600mL collection jar.
Pressurizable for fermentation and closed transfer to your keg
Includes BlowTie spunding valve kit, red & yellow carbonation caps, and floating dip tube as standard
The FermZilla is the perfect option for brewers that want all the advantages of a conical fermenter without the price tag of a full-blown stainless-steel unit. It allows you to dump trub, harvest yeast, and with the addition of CO2 cylinder and regulator, you can carbonate and serve – all in one vessel! The clear PET tank allows you to visually monitor fermentation activity and is pressure rated to 2.4 Bar (34.8 psi), which means you can ferment under pressure, reducing ester and fusel alcohols in your finished beer. This also gives the ability to perform pressure transfers. If you prefer to move your finished beer to a keg or other vessel, you can do so with little to no oxygen exposure.
The FermZilla Tri-Conical Easy-Grip model comes packed with accessories so you can take full advantage of this pressurizable fermenter on day one. The new stock standard includes Easy-Grip threaded lid ring, BlowTie spunding valve with integrated pressure gauge, ball lock carbonation caps for the lid and collection container, floating dip tube kit with weighted filter, volume marker graduation sticker, and adhesive thermometer.
What's Included:
FermZilla 27L Tank with 3" T.C. Bottom Port
Easy-Grip Threaded Lid Ring
Integrated Gauge BlowTie Kit Spunding Valve (0-15 psi)
Silicone Dip Tube Kit with Yellow Weighted Filter and SS Float
(2) Yellow Liquid Carbonation Caps
(2) Red Gas Carbonation Caps
Fermzilla Pressure Lid with Red PRV (35 psi)
3" T.C. Butterfly Valve
600 mL Collection Container with 3" T.C. Connection
Stainless Steel Stand with Swing Handles
3" tri-clamp with gasket
Graduation Sticker
Adhesive Thermometer
Specs:
27 L (7.1 gal) Total Volume
Pressure Rated to 2.4 Bar (34.8 psi)
Height in Stand - 30.2"
Tank Diameter - 13.9"
Diameter in Stand - 15.3"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the FermZilla tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer wort into the tank below 131°F or to use hot liquids below this temp for cleaning. When under pressure, make sure to keep your fermentation temperature below 95°F and keep the fermenter in an environment that is below 95°F ambient. This is especially important when fermenting with kveik yeast. These strains are known to ferment hot if no temperature control is being used. Exceeding the temperature rating may compromise the tank, leading to a shorter life span or sudden failure to maintain pressure. Even with proper use, we recommend replacing the tank every two years.
Please note: when using the FermZilla under pressure, you must perform a water pressure check to ensure your connections are leak proof. To do this, fill your FermZilla up with water, apply at least 15 psi pressure, and check for leaks around all caps and threads.
Pressure Stress
If you use the FermZilla to ferment under pressure, or you use CO2 to pressure transfer or force carbonate your finished beer, it is very important that you conduct semi-annual inspections of your tank. Even with perfect care, the FermZilla tank may show signs of wear from pressure stress over time. We recommend visually inspecting your tank for stress creases or other signs of wear once or twice a year. A hydro test should be conducted every two years, even if no signs of wear are found. The process is simple:
Fill the tank to the brim with water
Replace the Red PRV with a Green PRV rated to 4.5 BAR or higher
Pressurize the tank to 4 BAR (58 psi)
Check for leaks, then replace the Red PRV when finished
If leaks or potential points of failure are found, replace the tank before you continue using pressure with your FermZilla.
General Care
Taking good care of your FermZilla begins with cleaning and sanitizing the unit before and after use. The tank is made from food-grade PET, which is beautifully clear, but can be sensitive to long soaks in cleaners and acid-based sanitizers. In general, we do not recommend leaving products like PBW or StarSan soaking in the tank for more than an hour. Extended soaks have the potential to degrade the PET material and shorten the lifespan of the tank.
KegLand Part number: KL47296
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
FermZilla Tri-Conical 27L & 55L | User Guide
The Ultimate Grain to Glass Combo Pack! Get the Gen 4 BrewZilla & FermZilla Easy-Grip Tri-Conical with all the best accessories at an unbeatable price!
Brew extract or all grain batches on the BrewZilla; ferment, carbonate, and serve from the FermZilla. Everything you need from Grain to Glass!
Comes with all of the most highly recommended accessories for the BrewZilla, including the Neoprene Jacket to speed up heating times, Hop Spider to keep vegetal matter out of your wort, and Chilling Connection kit so you're ready to use the Immersion Chiller out of the box
Includes some of our favorite accessories for the FermZilla, such as the Pressure Kit with Floating Dip Tube so you're always racking the clearest beer and the Duotight BlowTie 2 for pressure fermentations and flow control keg transfers
Over $100 savings when purchasing this kit bundle compared to buying everything piece-by-piece!
Also available in 220V (AG582)
You can search high and low, but you won't find a better deal than the BrewZilla Ultimate Grain to Glass Combo Pack!
Combo Pack Includes:
BrewZilla Brewing System | Gen 4.1 | 9.25G | 110V
Neoprene Jacket
Hop Spider
Wort Chiller Connection Kit
FermZilla Tri-Conical Fermenter | Gen 3.2 | 7.1G
Plastic Pressure Kit w/ Floating Dip Tube
Duotight BlowTie 2 Spunding Valve
Insulating Jacket
Gen 4 BrewZilla All-in-One Brewing System
WiFi / Bluetooth enabled RAPT Controller tracks your brewday and automatically uploads detailed information to the RAPT portal
The top mounted RAPT Controller can be tilted upward for easy viewing, or detached from the unit to mount it on the wall or placed on your bench
Mirror polished dome shaped bottom with center drain — get every last bit of wort into your fermenter while the perforated bottom screen filters out 95% of hot break and hop matter
Make larger batches or higher gravity beers! BrewZilla offers the largest malt pipe capacity for units in its size range, and the Gen 4 unit has a 30% larger malt pipe compared to the previous generation
Perforated bottom on the newly designed malt pipe allows for improved mash recirculation flow without sacrificing efficiency
Element power percentage can be adjusted via the RAPT Controller. Go full power to heat up quickly, or dial it down so you don’t overshoot your strike water temp
The built-in pump is plumbed to both the recirculation and arm and the bottom ball valve. Recirculate wort during your mash, then close the recirculation valve and pump wort to your fermenter via the bottom valve
Pair with the RAPT-enabled Bluetooth Thermometer, allowing your BrewZilla to calculate a core mash temperature reading and more accurately control temperatures and mash steps
More RAPT-enabled accessories are coming, and future firmware updates can be downloaded to the RAPT Controller itself over the internet
WiFi/Bluetooth Enabled RAPT Controller
The RAPT Controller is mounted to the top of the boiler body, allowing for easy operation when you have the unit set on the ground. The controller can be tilted upwards to give you an even better view, or it can be removed from the BrewZilla entirely if you’d prefer to mount the controller on your wall or lay it down on a workbench. From the controller, you’ll orchestrate your entire brew day. Program mash steps, dial in element power, and operate the integrated pump all from one screen.
But the RAPT Controller is much more than a beautiful, full-color display switch board. Once synced to the RAPT Portal, you’ll be able to track, record and monitor your brews online. No need for handwriting notes or punching brew day details into your phone – all of the data from your brew is automatically logged to your portal profile. This information doesn’t just include your mash profile; it also captures detailed information about your element power and pump activity, opening the door for very precise repeatability.
And the RAPT Portal isn’t just a digital archive for your brew days. With your BrewZilla powered on, you can control your brewery from virtually anywhere using your phone’s web browser. Not sure when you’ll be home from work or your kid’s ball game going into extra innings? No problem! Before you head out, simply log into the RAPT Portal from your phone and tell the BrewZilla to start heating your strike water. Along with remote control, the portal enables you to program alarms and push notifications for all of your boil additions. We’ve all been caught up with a side task and failed to throw in that yeast nutrient or clarifying agent at the end of the boil, but the BrewZilla has the back of even the most forgetful brewer!
But wait, there’s more! In addition to WiFi connectivity, the RAPT Controller is also a Bluetooth gateway device. KegLand is currently developing various Bluetooth devices such as the Bluetooth Beacon Thermometer and other sensors which will be compatible with your brewery upon release. The RAPT Controller is able to receive information from Bluetooth Low Energy (BLE) devices, adjusting its processes based on this new stream of information while simultaneously logging it to your RAPT Portal. With the Bluetooth Beacon Thermometer, for example, you’ll be able to feed temperature readings from the top of your mash bed to the controller. The controller will then compare this reading with the main temp probe reading at the base of the kettle and adjust element cycling based on these combined readings.
Finally, the RAPT Controller WiFi connectivity allows you to update the controller’s firmware with a single click. Take advantage of new features and accessories as soon as they become available by simply keeping your BrewZilla connected to your local WiFi network. And again, the WiFi is already built-in! No need to come back for an expensive add-on accessory down the road.
High Capacity Malt Pipe
With an approximately 23.5 lb capacity, the BrewZilla can mash nearly 50% more grain than similar sized models of the Anvil Foundry and Grainfather G30. If you want to fill your fermenter with more than a 5-gallon batch worth of wort, or brew the highest gravity beer recipes, the BrewZilla is the brewhouse for the job. And the included malt pipe is just the beginning. If you want to expand your brewery’s grain capacity even further, KegLand makes Boiler Extension Kits and Extended Malt Pipes for that very purpose. The malt pipe features a perforated section at the bottom which improves mash recirculation flow without sacrificing efficiency.
Concave Base with Center Draining
Leave no wort behind! The concave base with center drain means you’ll be able to extract every last drop of wort to your fermenter. If you’ve brewed in a traditional flat bottom kettle, this center drain may be a bit perplexing at first. Many brewers are used to whirlpooling after the boil to pull hop matter into the center of the kettle, then transfer out using a pick-up tube that pulls from the kettle wall in order to avoid sucking up the solids. But fear not! One of the key features of the BrewZilla is the false bottom protection screen. This screen avoids the need for doing a whirlpool, filtering wort as it transfers and blocking more than 95% of hops and hot break from getting sucked into the pump. This not only prevents blocked pump issues, it also increases the efficiency of your brewhouse by eliminating kettle loss from wort that may have otherwise been left behind.
Ultra Low Watt Density Elements
The concave base on the BrewZilla also allowed for larger heating elements with significantly lower watt density than other breweries. When a lot of energy is coming off of a small element, the local temperature near the element can be so high that it scorches the wort and causes caramelization. Lower watt density essentially means you can produce lighter color beers that would otherwise have fallen victim to caramelization effect. It also reduces that chance of boilovers and reduces stress on the elements which extends their life expectancy.
Easy Access Built-In Pump
The built-in pump allows you to recirculate your wort during the mash for improved efficiency and more even temperature distribution. But it can also be used to transfer your wort from kettle to fermenter rather than relying on a gravity feed, and with the optional CIP Rotar, you can used the pump to clean your BrewZilla (or fermenter) after every use. During your brew day you’ll be able to control the pump from the RAPT Controller with a dedicated button for turning the pump on and off. Another feature you’ll find on the controller is adjusting the pump flow. This doesn’t control the actual volume of the flow (you can do that from the ball valve located on the recirculation arm), but rather cycles the pump on and off automatically based on your setting. At 100%, the pump remains on continuously. But at 80%, the pump will cycle to be on 80% of the time and off 20% of the time. This may not be a feature that every brewer thinks they need, but it’s an excellent way to avoid running the pump dry accidentally, as the time the pump is off allows recirculating wort to filter through the grain bed and back into the pump inlet.
If you flip over the boiler, you’ll find the magnetic drive pump and all the plumbing is right at your fingertips. This means you don’t have to disassemble the base in order to access the pump for cleaning or maintenance if required. It also means the plumbing can be changed more easily too. For instance, the unit comes as standard with the plumbing from the pump feeding both the recirculation arm and the transfer valve, but you change this so the tap outlet bypasses the pump if you prefer.
MoreBeer!'s Final Word
We’ve been selling all-in-one brewing systems ever since they first hit the market, and we have to say that the Gen 4 BrewZilla is not only the most feature-packed unit ever made, it’s also offered at an incredibly competitive price point when compared to other systems. You’ll get all of the cutting edge Bluetooth technology you’d get with the Grainfather and at an exceptionally lower price tag. Plus, you get the WiFi capabilities as standard, rather than as a $100 add-on accessory. When it comes to mash recirculation, that’s yet another built-in feature on the BrewZilla, and the pump can also be used for transferring and CIP cleaning. The Foundry has a great starting price, but if you want to unlock its full potential, you’ll need to spend another $100 for the recirculation pump kit. What’s more, no other system in the same ‘weight class’ has the same grain capacity. And if the standard capacity isn’t quite enough, the BrewZilla can be easily upgraded with a Boiler Body Extension Kit and Extended Malt Pipe. When you purchase the BrewZilla, you can feel confident that you’re investing in a top shelf system and all of the critical features you’re expecting will be included.
Perfect for Distillation
If you want to expand your lineup of homemade libations to offer Spirits in addition to Ales & Lagers, the BrewZilla makes an excellent pot still! Add the Distillation Lid upgrade and pair it with an AlcoEngine Copper Reflux Condenser or Copper Pot Still Top. AlcoEngine Stills have been selling on the home market for years and offer some of the most affordable, beginner-friendly stills you'll find.
Features:
Gen 4.1
Stainless steel construction
9 gallon total capacity with a finished beer output of 5-6 gallons
WiFi/Bluetooth Enabled RAPT digital temperature controller
Automatic step mashing with 6 programmable stages
110-120V power and plug
12.5A
Requires 20A circuit
Dual heating elements (1000 watts and 500 watts)
Stainless steel 1/2" ball valve for gravity draining or transferring via pump
Immersion wort chiller included
Stainless steel malt pipe/basket
Stamped in volume markers
Glass lid
Adjustable lid clamps (do not use with glass lid in place - see below)
Magnetic drive pump for recirculation, transfers, and cleaning
Recirculation arm
PPSU sight glass
Bottom handle for easy lifting and pouring
Rubber feet
Temperature reads in °F or °C
Approximately 32.75" H (with recirculation arm) x 12.5" D
Recommended max. grain bill: 23.5 lbs
AlcoEngine Still ready with the purchase of a Distillation Lid
Pump Specs:
Max Capacity: 2.9–3.1 gal/min
Max Head: 4.9–6.8 ft.
Poles: 2
Voltage: 110–120V-AC
Frequency: 50–60Hz
Power: 6 watts
Current: 60 mA
Speed: 2600–3000rpm
Duty Cycle: Continuous
Capacitor: 2µF
Input/Output: 13mm barb
Water Resistance: IPX2
Please note: due to patent restrictions in the United States, the malt pipe has been redesigned with one set of bottom feet. This model does not include the "two stage" malt pipe as advertised by KegLand and featured in previous MoreBeer! YouTube videos.
Please Note: When removing the malt pipe to drain after mashing, it is important to do so slowly rather than in one swift pull. If the malt pipe is removed all at once when it is full of wort, it is possible for the draining wort to spray out and over the rim of the brewery through the perforated bottom. Remove the malt pipe slowly so that some of the wort can drain out before it is fully removed and set on its bottom feet. This can be done by hand on the 35L unit, but for the 65L and 100L units we highly recommend using the Pulley System for removing the malt pipe.
Warning: Do not engage the adjustable lid clamps when brewing with the BrewZilla's standard glass lid. The clamps are only intended to be used with distillation lids or other metal accessories. With too much tension, it is possible for the lid clamps to break the glass lid when engaged.
Warning: If you are going to use an extension cord with the BrewZilla, you must ensure that the cord is the correct gauge and properly rated to suit the power requirements of your brewery. See the reference chart below for the recommended gauge based on your unit and the length of cord you wish to use.
35L (110V)
35L (220V)
65L (220V)
100L (220V)
10 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
25 ft.
14 Gauge
14 Gauge
12 Gauge
10 Gauge
50 ft.
12 Gauge
12 Gauge
10 Gauge
8 Gauge
FermZilla Tri-Conical Easy-Grip Fermenter
A best seller for a reason! Tons of features at an incredible cost
Crystal Clear super smooth PET makes fermenting and cleaning super easy
3" Butterfly valve at bottom makes removing yeast/trub easy with the 600mL collection jar.
Pressurizable for fermentation and closed transfer to your keg
Includes BlowTie spunding valve kit, red & yellow carbonation caps, and floating dip tube as standard
The FermZilla is the perfect option for brewers that want all the advantages of a conical fermenter without the price tag of a full-blown stainless-steel unit. It allows you to dump trub, harvest yeast, and with the addition of CO2 cylinder and regulator, you can carbonate and serve – all in one vessel! The clear PET tank allows you to visually monitor fermentation activity and is pressure rated to 2.4 Bar (34.8 psi), which means you can ferment under pressure, reducing ester and fusel alcohols in your finished beer. This also gives the ability to perform pressure transfers. If you prefer to move your finished beer to a keg or other vessel, you can do so with little to no oxygen exposure.
The FermZilla Tri-Conical Easy-Grip model comes packed with accessories so you can take full advantage of this pressurizable fermenter on day one. The new stock standard includes Easy-Grip threaded lid ring, BlowTie spunding valve with integrated pressure gauge, ball lock carbonation caps for the lid and collection container, floating dip tube kit with weighted filter, volume marker graduation sticker, and adhesive thermometer.
What's Included:
FermZilla 27L Tank with 3" T.C. Bottom Port
Easy-Grip Threaded Lid Ring
Integrated Gauge BlowTie Kit Spunding Valve (0-15 psi)
Silicone Dip Tube Kit with Yellow Weighted Filter and SS Float
(2) Yellow Liquid Carbonation Caps
(2) Red Gas Carbonation Caps
Fermzilla Pressure Lid with Red PRV (35 psi)
3" T.C. Butterfly Valve
600 mL Collection Container with 3" T.C. Connection
Stainless Steel Stand with Swing Handles
3" tri-clamp with gasket
Graduation Sticker
Adhesive Thermometer
Specs:
27 L (7.1 gal) Total Volume
Pressure Rated to 2.4 Bar (34.8 psi)
Height in Stand - 30.2"
Tank Diameter - 13.9"
Diameter in Stand - 15.3"
Lid & Collection Container Ports - 28 mm PCO 1881 threads
Temperature Rating:
When not under pressure, do not expose to liquids above 131°F
When under pressure, do not expose to any temperatures above 95°F*
*Please note that the temperature rating for the FermZilla tank is lower when using it under pressure. When not under pressure, it is perfectly safe to transfer wort into the tank below 131°F or to use hot liquids below this temp for cleaning. When under pressure, make sure to keep your fermentation temperature below 95°F and keep the fermenter in an environment that is below 95°F ambient. This is especially important when fermenting with kveik yeast. These strains are known to ferment hot if no temperature control is being used. Exceeding the temperature rating may compromise the tank, leading to a shorter life span or sudden failure to maintain pressure. Even with proper use, we recommend replacing the tank every two years.
Please note: when using the FermZilla under pressure, you must perform a water pressure check to ensure your connections are leak proof. To do this, fill your FermZilla up with water, apply at least 15 psi pressure, and check for leaks around all caps and threads.
Pressure Stress
If you use the FermZilla to ferment under pressure, or you use CO2 to pressure transfer or force carbonate your finished beer, it is very important that you conduct semi-annual inspections of your tank. Even with perfect care, the FermZilla tank may show signs of wear from pressure stress over time. We recommend visually inspecting your tank for stress creases or other signs of wear once or twice a year. A hydro test should be conducted every two years, even if no signs of wear are found. The process is simple:
Fill the tank to the brim with water
Replace the Red PRV with a Green PRV rated to 4.5 BAR or higher
Pressurize the tank to 4 BAR (58 psi)
Check for leaks, then replace the Red PRV when finished
If leaks or potential points of failure are found, replace the tank before you continue using pressure with your FermZilla.
General Care
Taking good care of your FermZilla begins with cleaning and sanitizing the unit before and after use. The tank is made from food-grade PET, which is beautifully clear, but can be sensitive to long soaks in cleaners and acid-based sanitizers. In general, we do not recommend leaving products like PBW or StarSan soaking in the tank for more than an hour. Extended soaks have the potential to degrade the PET material and shorten the lifespan of the tank.
KegLand Part number: KL47296
NOTE: FermZilla tanks are marked with a manufacturer’s “expiry date”. This does not indicate that the tank is bad after this date; it simply indicates that a hydro test may be in order. 2 years after production and every 2 years after first use, it is recommended that the tank be hydro tested to ensure the tank is holding pressure. You will also need the D1072 Green PRV to perform the test. If you do not plan to pressurize the fermenter, the test is not necessary.
FermZilla Tri-Conical 27L & 55L | User Guide
MoreBeer Presents The Lineup The best brands in brewing — curated, stocked, and ready to ship. Forty-plus partners, one cart, free shipping over $79. Headliners BrewBuilt◆KegLand◆KOMOS◆Lallemand◆Briess Main Stage CellarScience◆Blichmann◆Ss Brewtech◆Fermentis◆Weyermann◆Anvil◆Yakima Chief Featured Flash Brewing◆Duotight◆Brewzilla◆Torpedo Kegs◆Artisan Hops◆Grainfather◆Five Star Also Featuring ForgeFit◆Pop Cultures◆Speidel◆Tilt◆Cannular◆Intertap◆Kveik Yeastery◆Bootleg Biology◆Anton Paar◆Abstrax◆True Citrus Browse All Brands Our Own...
Read more
,
by Jim Mulkern

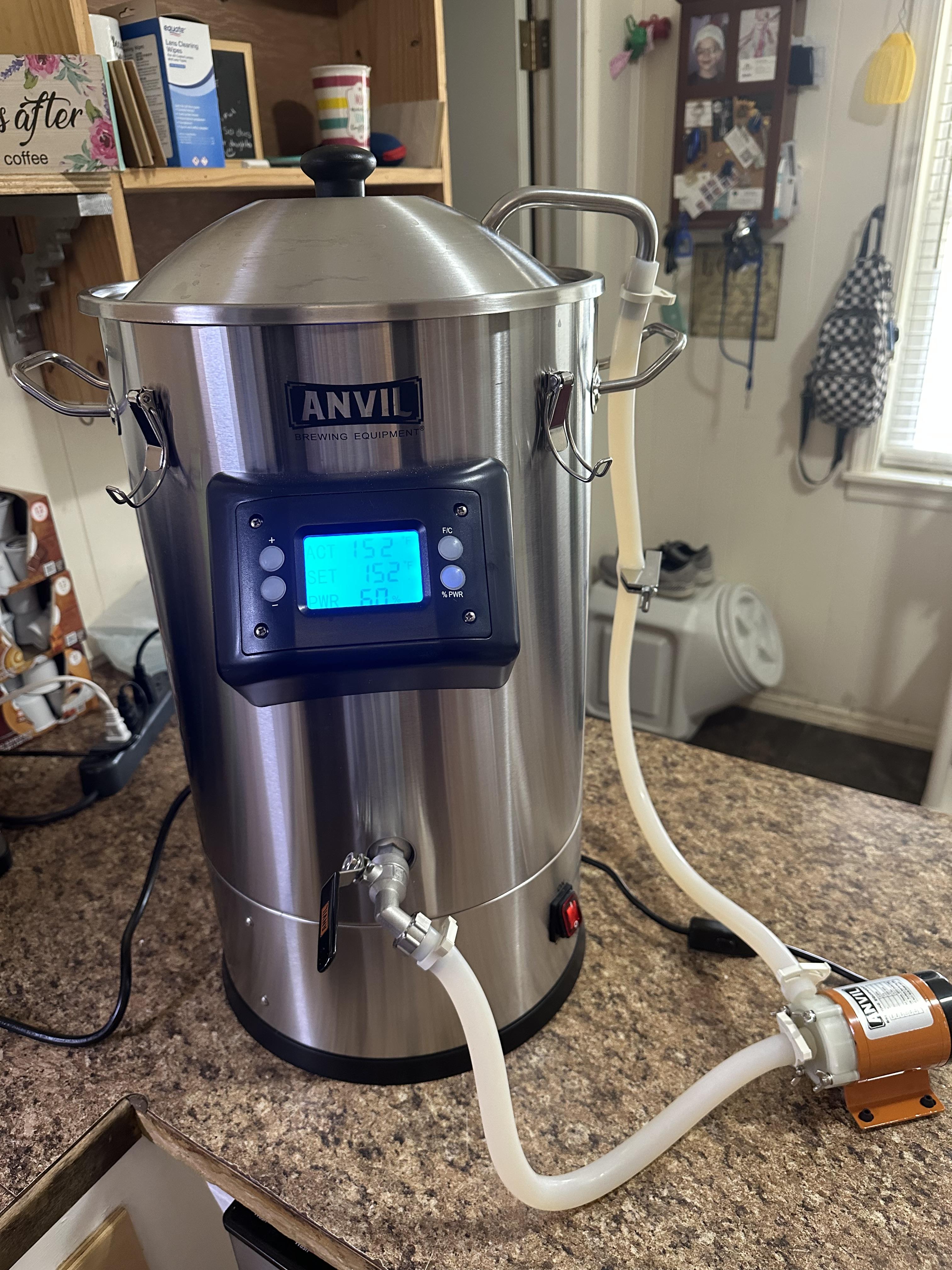

Modifications & Tricks to Increase Efficiency of Anvil Foundry
By Jim Mulkern The Problem: Let me set the scene for you. The day has finally come. That eight percent double IPA kit you have...
,
by Will Burgan
To Fad or not to Fad? That is the question.
By Will BurganAnyone who has homebrewed or worked most jobs has experienced the “flavor of the week” phenomenon. In my other career of “Higher Education”...

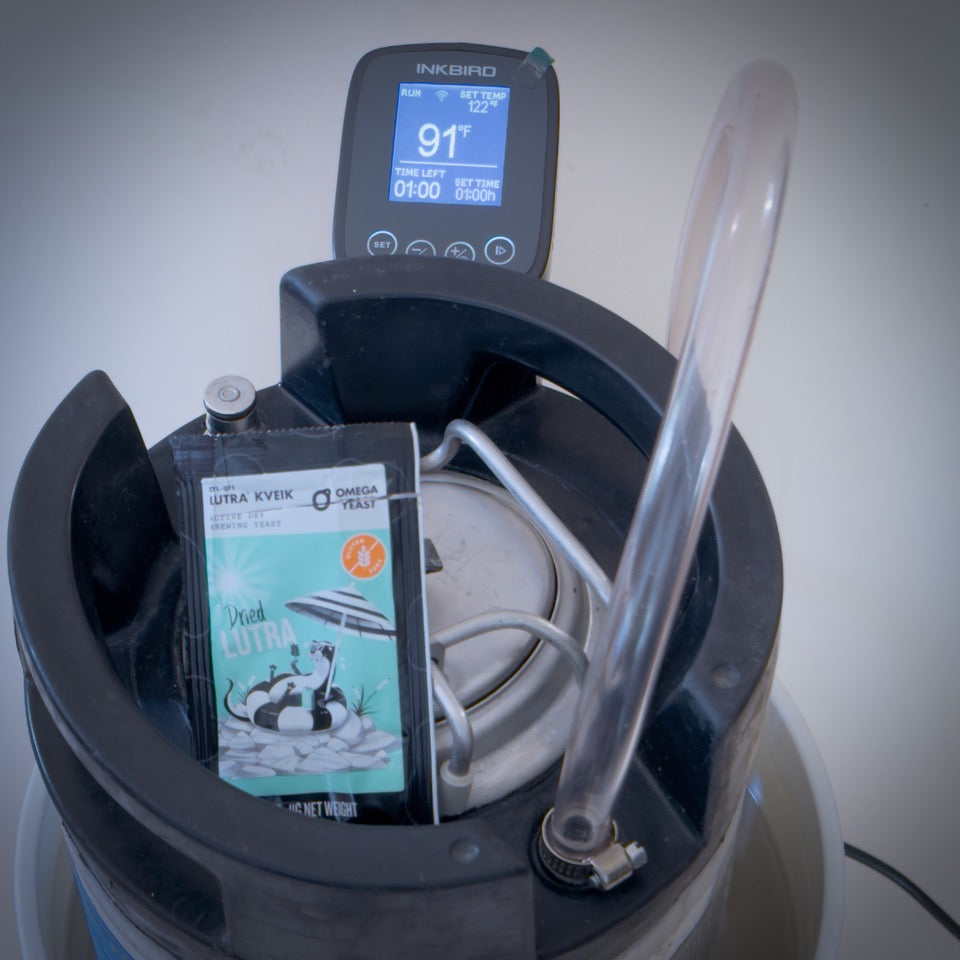

By Thom Cannell Finally, an easy method for delivering optimum fermentation temperature to a yeast that loves 90+°F temperatures. As a benefit, you can create...

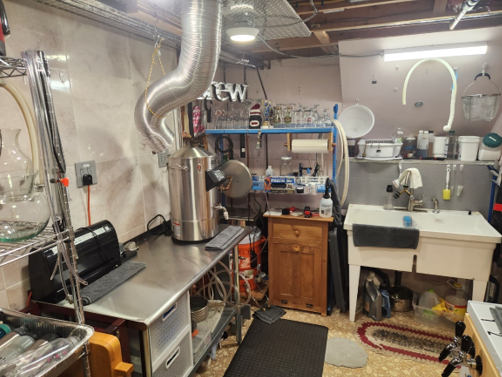

By Sergio Bencivenga LEAN manufacturing and how it helped reignite my passion for brewing. As with most homebrewers, I began my homebrew journey with an...
,
by Randy Mosher (Brewing Techniques)
The Frugal Brewer's Guide to an Advanced Home Brewery
by Randy Mosher (Brewing Techniques) You too can piece together your own automated 15-gallon brewery from junkyard parts and scrap metal. For more than five...
