A simple, low cost pH meter eliminates the guesswork of using pH strips.
Simple 1-point calibration, accuracy to 0.1 pH units, and a pH 0-14 range make this tester incredibly easy to live with. No more guessing at your mash pH!
Includes calibration screwdriver, batteries and user manual.
Milwaukee Part Number: pH600AQ
One of the great features of the KegLand pH Meter is the replaceable probe. The probes of pH meters wear out through normal use. Instead of making you buy a whole new pH meter you can just get the probe!
Kegland Part Number: KL04176
Water chemistry is key to brewing the best beer possible, and that's where a pH meter becomes an essential tool Measure your strike water's pH and make informed brewing salt additions to provide the ideal environment for enzymatic activity during the mash Digital display is easy-to-read and provides instant test results—no need to do a color comparison like with pH strips Automatic Temperature Compensation adjusts the results based on the temperature of the sample so you don't need to cool the sample before taking a reading Electrode is protected by a waterproof cap so your storage solution won't evaporate and dry out the electrode The KegLand pH Meter will get you a very accurate reading with its 0.01 pH resolution. The calibration process couldn't be easier to perform, just place the probe in the buffer solution closest to pH of the sample you'll be testing and press the button! This pH meter also includes ATC (Automatic Temperature Compensation) so you don't have to get your sample all the way down to room temperature before you take your reading. 3-point calibration allows this unit to be calibrated at three different standard levels - 4.00, 6.86 or 9.18. These standards are included with the pH meter, and refill packs are also available. The pH meter features a replaceable probe in case yours is lost or damaged. Homebrewing can be a tough environment for your pH probe so we feel you shouldn't have to buy a whole new pH meter everytime your probe breaks. The cap that holds the probe storage solution has a very tight seal and should prevent your probe from drying out while not in use. Don't worry about getting this meter wet either, because the entire unit is waterproof! Features: Replaceable probe ATC (Automatic Temperature Compensation) Waterproof electrode cap Accurate to 0.01 pH Easy 3 point calibration LR4/AG13 batteries included Kegland Part Number: KL04169 NOTE: Upon first time use prior to calibration, rehydration of the electrode with MT624Bis essential to get an accurate reading for correct calibration.
Keep your KegLand pH Meter's probe in great condition by storing it in this storage solution. Letting your probe dry is the leading cause of degradation. By leaving your pH meter in this solution when not in use, you will extend the life of your probe and maintain more accurate readings.
KegLand Part Number: KL04183
Get an extremely accurate reading with this rugged bench-top pH meter. It offers the highest accuracy meter, with ATC, featuring a separate temperature probe for temperature readings independent of the electrode. The separate temperature probe allows you to check the temperature before submersing the electrode. Even though the name says "Bench-Top" it can easily be handheld. Temperature reading is in Celsius. For long term health of your electrode, use our highly recommended pH storage solution MT618. Features include: Automatic Temperature Compensation up to 50 C (122 F) 0.01 accuracy with a 0-14 pH range Push button calibration 2 year instrument warranty from Milwaukee 6 month electrode warranty 500 hour run-time on the battery Download the PDF
pH56 is a pocket pH meter with a lot of features. It has a resolution of 0.01 pH, a range of -2.00 to 16.00 pH, and an accuracy of 0.05 pH. It also reads temperature from 23.0 degrees F to 140 degrees F (-5.0-60 C), and has automatic temperature compensation. The unit is completely waterproof.
The pH56 has a stability indicator and hold function that freezes the display for easy and accurate recording. The large display also has graphic symbols to guide you through the operations. Calibration is made automatically in 1 or 2 points with memorized standard and NIST buffer sets. Auto power off saves battery power after non-use. The double-junction electrode can be replaced in a very fast and simple way! The modular design allows easy electrode and battery replacement.
Milwaukee Part Number: pH56
If you’re a serious homebrewer, you know the importance of proper pH during the brewing process. Use these calibration solutions to keep your pH meter reading accurately before each brew. Includes 4oz each of 4.00 and 7.00 buffers. We package these solutions from bulk quantities to get you the best pricing. For testing, pour buffers into a small glass. You do not want to stick the probe of the pH meter into the buffer jars directly because you will eventually sacrifice the accuracy of your buffers. Expires after 6 months if unopened. Expires after 3 months if opened. Download the PDF
pH indicator strips in the range of 1-14 pH. Use these wide range strips for general determination of the pH, or to reduce the range before using a narrow range pH testing strip. A color reference chart is located inside the booklet. 80 test strips per booklet.
Electrode storage solution is designed specifically for maintaining pH meter electrodes in optimal condition. Before storage, add a small amount of storage solution to the cup/cover of the pH meter (enough to submerge the glass electrode). This will maintain hydration of the electrode, increasing its life and its ability to be calibrated.
A replacement electrode for the MT608 & MT609 pH meter. The electrode is the consumable portion of the pH meter which actually makes the measurement. All pH electrodes wear out over time and must be replaced. If your meter is having trouble calibrating or the reading drifts then a bad electrode is the likely culprit. Download the PDF Milwaukee Part Number: SE220
Use buffer solutions to keep your pH meter calibrated. These are the same 3 solution powders that are included with the KegLand pen-style pH meter (MT624). We would strongly recommend if you haven't used your pH meter in a while to always use a buffer solution before you start your brew. Directions:
Completely empty the powder into a clean glass jar Add 8.5 oz of deinoized water Stir until the powder has completely dissolved KegLand Part Number: KL06279
pH indicator strips in the range of 4.6 - 6.2 pH, the ranges typically seen in brewing. The vial contains 100 strips, and a color reference chart for determining the pH on the outside of the vial.
The Milwaukee MW151 MAX 3-in-1 PRO pH/ORP/Temp Bench Logging Meter is preferred by people testing all types of samples viscus or not, in a variety of applications that cause other pH meters and electrodes to fail. The logging feature allows log-on-demand and log-on-stability features that ensure all readings are accurate and not entered incorrectly. The MA917B/1 Milwaukee double junction electode is refillable and easy to clean. From brewers and wine makers to hydroponic growers, labs and water treatment, the MW151 MAX is your Bench Logging Meter for fast, accurate readings.
Accuracy
People choose the MW151 MAX 3-in-1 PRO pH/ORP/Temp Portable Logging Meter to improve the accuracy of their testing program. With up to 5 point calibration and 7 standard buffer choices (2 custom buffers also), the meter can be quickly calibrated to a higher accuracy compared with one or two point calibration. The MW151 MAX meter is accurate to ± 0.002 pH. 8 x more accurate than some alternative meters.
The meter comes with a refillable, glass, double junction pH electrode and MA831R temperature sensor allowing the meter to automatically adjust the pH reading for the effect of temperature (ATC).
The meter can also be used as a very accurate thermometer with accuracy +/-0.4°C (+/-0.8°F).
Low Maitenance
The MW151 MAX pH/OPR/Temp Bench Logging Meter comes with the Milwaukee glass, double junction MA917B/1 pH electrode. This is Milwaukee's top selling lab grade electrode for a reason. Designed to be both low maintenance (refillable) and able to withstand more challenging samples (double junction). The MA917B/1 is ideal for use in beer making, winemaking, hydroponics, laboratories and many other applications.
Features:
Fast easy-to-read results with large duel level digital LCD readout.
Extreme accuracy to ±0.002 pH | +/- 1 mV OPR | +/- 0.4°C (+/-0.8°F).
Extended pH range (-2.00 pH to 20.00 pH / -2.000 to 20.000 pH).
Lightweight, sleek design with small benchtop footprint.
Simple easy-to-use logging and USB download functions, manual or on stability up to 1,000 logs.
Electrode diagnostics feature checks and displays the condition of the pH electrode.
Easy measurement: just place the electode and temperature probe in the sample, gently stir and wait for the reading to stabilize.
Simple push button, automatic up to 5 point calibration for increased accuracy.
Up to 7 Standard calibration solutions (1.68, 4.01, 6.86,7.01, 9.18, 10.01 and 12.45) and 2 custom choices.
Refillable, glass, double junction lab grade pH electrode for low maintenance and high performance with a screw on cap to ensure proper storage.
Built-in rechargeable battery with 8 hours battery life (battery included).
Selectable Auto-off feature.
Alphanumeric LCD display messages for friendly, intuitive information, warnings and error messages.
Internal clock date to keep track of different time-dependent functions (calibration, timestamp,calibration time out).
3 feet probe cables for extra flexibility when testing.
Care and Use
pH meters usually start performing poorly because of problems with the probe. The two parts of the pH probe that cause problems are the glass sensing bulb and the reference junction.
Sensing Bulb
The glass bulb loses sensitivity with use and will eventually fail. This is true of all pH probes.
Reference Junction
The reference junction is a small hole that allows the meter to compare the sample to a reference. The reading is generated based on the electrical difference between the sample and reference. If the junction hole gets clogged, the pH electrode will no longer function.
You can extend the life of your pH electrode in the following ways.
Storage
To minimize clogging the pH probe needs to be kept hydrated. Long periods of dry storage will damage the sensitivity of the probe. Allowing the probe to dry out may also result in the junction hole getting clogged.
Storing in pH probe storage solution or pH calibration buffers will help address both these issues. Do not store in tap water and DI water. This will damage the sensitivity of the probe.
The best way to store the probe is with the probe's cap filled with storage solution or calibration buffer and the cap tightened to prevent leakage. It is also recommended that to store the electrode upright to further reduce the potential for leakage.
Cleaning and Maitenance
Residue from the sample can impact the sensitivity of the sensing bulb and clog the junction. This is especially true if the sample has a lot of organic material. We recommend regularly soaking your electrode in cleaning solution. Also:
Inspect the electotrode for damage or scratches, if present replace the electrode.
Inspect the cable. The connection cable and insulation must be intact.
Connectors should be clean and dry.
Rinse off salt deposits with water or DI water.
Calibration
The pH sensing bulbs become less sensitive over time so make sure that you are calibrating regularly to keep your PRO Plus pH meter accurate. Also, calibrate after cleaning or a long period of storage.
Specifications:
pH Range: -2.00 to 20.00 pH / -2.000 to 20.000 pH
ORP Range: ±2000.0 mV
Temp. Range: -20.0 to 120.00°C (-4.0 to 248.0°F)
Resolution: 0.01 pH / .001 pH
Resolution: 0.1mV
Resolution: 0.1°C / 0.1°F)
Accuracy: ±0.01 pH / ±0.002 pH @ 25°C / 77°F
Accuracy: ±1mV
Accuracy: ±0.4°C |±0.8°F
pH Calibration: up to 5 point automatic pH calibration | 7 standard buffers (pH 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45) and two custom buffers
Temperature Compensation: Automatic, -20.0 to 120.0°C (-4.0 to 248.0°F) or manual
pH electrode: MA917B/1 glass, double junction pH electrode (supplied)
Temperature probe: MA831R (included)
Logging: Maximum 1,000 samples (stored in up to 100 lots) / on demand, 200 samples on stability, 200 samples/ Interval logging, 1000 logs
PC Connectivity: 1 USB Port, 1 micro USB port
Power supply: 12VDC, 5 VDC USB Adapter (included)
Battery life: Approx. 8 hours of use
Auto-off: Selectable 5, 10, 30, 60 min. or off
Environment: 0 to 50°C / 32 to 122°F; max RH 95%
Dimensions: 230 x 160 x 95 mm (9.0 x 6.3 x 3.7 inches)
Weight: 0.9 kg / 2.0 lbs.
edge® digital wine pH meter kit delivers precision while offering simplicity and versatility in a sleek design.
Upgrade to the Hanna edge® wine pH kit for professional winemakers. The HI2020W allows you to add a conductivity probe and a dissolved oxygen probe to give you full versatility. Fast results, ultra-accurate, hassle-free analysis.
Complete meter kit for measuring pH in wine.
CAL Check™ feature ensures the accuracy of the meter.
Great for professional and home winemakers.
The Importance of pH in Wine Making
The pH of wine is important to determine because it will affect the quality of the final product in terms of taste, color, oxidation, chemical stability and other factors. Generally in winemaking, the higher the pH reading, the lower amount of acidity in the wine. Three important factors in determining the pH of wine include the ratio of malic acid to tartaric acid, the amount of potassium, and the total amount of acid present.
The edge HI2020W wine pH meter kit includes all the necessary supplies to determine the pH of wine must and juice accurately. The meter supplied with the HI2020W is the multiparameter edge, HI2020. The HI2020 is an advanced meter that is rich in features including using digital electrodes that can be swapped out anytime to switch to a different parameter, built in rechargeable battery, two USB ports, datalogging, automatic calibration, GLP (good laboratory practice) data for last calibrations, and Hanna’s exclusive calibration check feature that will alert the user to potential problems during calibration including when to clean the electrode and when the buffer might be contaminated. The HI2020 is a versatile pH meter for winemaking that be used as a benchtop, portable and even a wall mount to conserve space. The HI2020 is one of the most advanced meters available but the most important aspect in measuring pH is having the correct sensor for the application.
The HI2020W wine kit is packaged with the HI10480 (MT620Z) in place of the normally supplied HI11310. The HI10480 is a specially designed pH electrode that is resistant to clogging to the solids found in grape juice and must. This double junction, refillable pH electrode has a unique ground glass junction and PTFE sleeve to provide unsurpassed performance for the wine industry. A standard pH electrode will have a ceramic junction that can be easily clogged by solids. When this happens the pH readings will be erratic and drift over time before stabilizing on the actual pH value of the wine sample. The HI10480 with CPS technology will prevent the junction from clogging. The HI10480 is a digital electrode that when used with the edge HI2020 will change the default buffer set from pH 4.01and 7.01 to pH 3.00 and 7.01.
The edge HI2020W (MT620) wine pH meter (kit) includes the HI180-1 compact magnetic mini-stirrer. The use of a magnetic stirrer allows for proper mixing and the sample to be homogenous in consistency and temperature. The stirring of the sample also helps speed up the response time of a sensor in achieving a stable reading.
The edge HI2020W wine pH kit also includes all the solutions for calibration and maintenance. In order to ensure the highest of accuracy in measurement it is important to bracket the calibration buffers around the expected reading. Since the pH of wine is less than pH 4.01 it is important to calibrate at a lower pH value. For calibration the kit includes the HI5003 (MT611) pH 3.00 and the HI5007 pH 7.01 technical calibration buffer. Each bottle of buffer NIST traceable is supplied with a certificate of analysis that includes lot number, expiration date and reference materials used in production.
For maintenance the The HI70635L cleaning solution for wine deposits and the HI70300L (MT631)electrode storage solution. When the “clean electrode” message is displayed during the calibration of the HI2020 edge or there is a poor probe condition (i.e. less than 30%) then soak the HI10480 in the cleaning solution for 15 minutes to clean any deposits from the glass surface. After cleaning the probe should be rinsed with purified water and then allowed to soak in the storage solution for 2-3 hours. The electrode storage solution is also used when the electrode is not in use. Either place a small amount into the storage cap or into a beaker in order to maintain a properly hydrated electrode.
Importance of maintaining a clean pH electrode
The most common cause for pH measurement inaccuracies is an unclean or improperly cleaned electrode. This is very important to note, because during calibration, the instrument assumes that the electrode is clean and that the standardization curve created during the calibration process will remain a valid reference until the next calibration. pH meters on the market today will allow an offset voltage of approximately ±60 mV. The deviation from 0 mV is not unusual but ideally should be no greater than ±30 mV. The calibration process compensates for the change in offset voltage. If the mV offset continues to deviate and the meter is calibrated with a dirty electrode then inaccurate readings will result.
The Cleaning Solution Series ensures maximum efficiency and accuracy of your sensors when used for its designated application. Cleaning is a fast and effective routine that should be performed on a regular basis as a preventative measure against using a dirty electrode and to ensure that the junction is not clogged.
Benchtop
Portable, or Wall Mount versatile pH meter
Swappable digital electrodes
Built in rechargeable battery
Two USB ports
Automatic calibration,and data logging for GLP data
Large easy to read display
NOTE: The shape of the stir plate may differ from what is shown in the example photo. The function and approximate size will be the same, but it may be round or square depending on what the supplier has in stock.
Our HALO® for home and craft winemakers has a glass body, spherical tip, and Hanna's Clogging Prevention System (CPS) that resists clogging 20x longer. All readings are transmitted directly to your Apple or Android device or the edge®blu.
Take laboratory grade pH and temperature measurements using your smart phone or tablet.
Easily connect to the Hanna Lab App at the press of a button via Bluetooth® wireless technology.
Group your data by time or notation. Email it for storage or share it with friends or colleagues.
The HALO® Wireless Wine pH Meter incorporates Bluetooth® Smart technology with an application-specific design. There are several features that make it ideal for measuring the pH of wine.
General Purpose Glass Formulation
General Purpose (GP) glass provides the best response over the entire pH range and can be used for a wide range of applications.
Built-In Temperature Sensor
HI10482 features a built-in temperature sensor for temperature measurement and compensation.
Movable CPS Sleeve Junction
Clogging Prevention System (CPS) technology was designed for pH measurements in wine juice and must samples that have a high solids content. CPS technology utilizes a ground glass junction that allows proper flow of the liquid with a PTFE sleeve that repels solids. When the HALO become dirty, the PTFE sleeve can be moved to clean the ground glass surface rejuvenating the junction resulting in a 20x longer electrode lifespan.
Real-Time Data
Display of pH and temperature updated every second. Readings are automatically saved to a history file every hour, limited only by the available memory on the device.
Fluid, Dynamic Graphing
Measurements can be displayed alone on the display, with tabulated data, or as a graph. The graph can be panned and zoomed with pinch-to-zoom technology for enhanced viewing.
GLP (Good Laboratory Practice)
Displays date and time of current calibration, offset, and average slope, along with calibrated buffers, mV values, temperature and slopes between each buffer.
Calibration Reminder & Measurement Alarms
The Hanna Lab App alerts you when HALO needs calibration or if a measurement threshold is exceeded.
Log & Share Data
Saved log files may be annotated with measurement-specific information. Data is easily shared via email in CSV format.
Help & Tutorials
Demo mode helps you explore features of the Hanna Lab App. General app information, HALO information, pH tutorial, maintenance tutorial, and contact information are available in help.
HALO® Features/Benefits
Connects to Hanna Lab App with a compatible Apple or Android Device via Bluetooth Smart Technology (Bluetooth 4.0)
Up to five-point pH calibration with seven standard pH buffers available
Calibration reminder
• Alerts you when HALO needs calibration
• Appropriate preprogrammed calibration buffer set for application specific Halo pH electrodes
Real-time data
• Displays pH and temperature updated every second
Basic Good Laboratory Practice (GLP)
• Displays date and time of current calibration along with offset and average slope
Full GLP
• Displays date and time of current calibration, offset and average slope along with calibrated buffers, mV values, temperature and slopes between each buffer
Fluid, dynamic graphing
• Measurement can be displayed with tabulated data or as a graph. The graph axes may be expanded using pinch-to-zoom technology for enhanced viewing
Measurement alarms
• Alerts you if the measurement threshold is exceeded
One button sample tagging
• Pressing either the icon in the Hanna Lab App or button on the HALO will tag sample data for easy reference
Data logging with custom annotations
• Saved log files may be annotated with measurement specific information
• Data is autosaved every hour
Four ways to save and share data:
• All data since last autosave
• Annotations only
• All data within a timed interval
• Annotations only within a timed interval
• Share data via email in CSV format
Help and tutorials:
• Demo mode to help explore features of the Hanna Lab App
• General app information
• General HALO information
• pH tutorial
• Maintenance tutorial
• Contact information
Compatibility:
HALO is compatible with the following devices:
Android
Compatible with most devices equipped with Bluetooth Smart Technology (Bluetooth 4.0) and running Android 4.3 or later.
iOS
iPad (3rd generation or newer)
iPhone (4S or newer)
iPod Touch (5th generation or newer)
HI2202 edgeblu Meter
Take laboratory grade PH and temperature measurements using your smart phone or tablet
Easily connect to the Hanna Lab App at the press of a button via Bluetooth wireless technology
Group your data by time or notation
Email it for storage or share it with friends or colleagues
Hanna's Clogging Prevention System (CPS) resists clogging 20x longer, monitor data with real time graphing and display
Double Junction, refillable glass electrode with BNC connector and 1m cable. Replacement for the electrode that is included with the Milwaukee MW151 MAX pH/ORP/Temp Logging Bench Meter. The electrode is the consumable portion of the pH meter which actually makes the measurement. All pH electrodes wear out over time and must be replaced. If your meter is having trouble calibrating or the reading drifts then a bad electrode is the likely culprit.
Milwaukee Part Number: MA917B/1

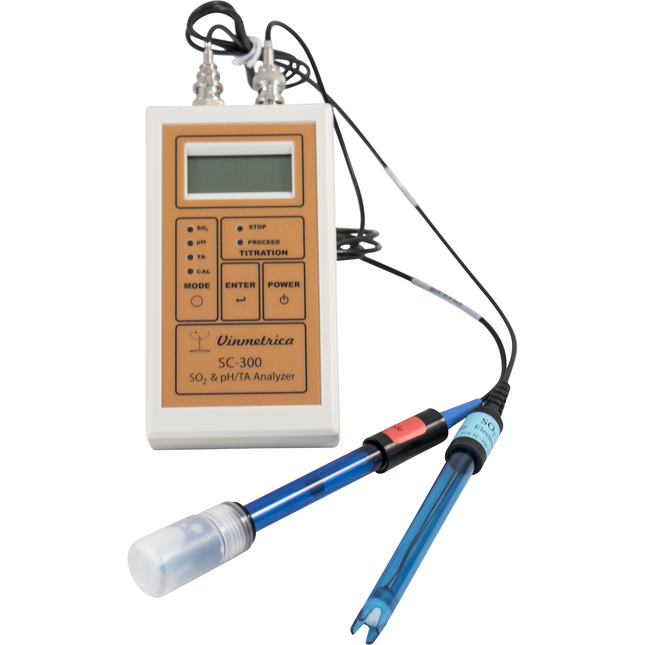

Replacement pH electrode for the SC-300 Analyzers that have a manufacturing date after February 2016. Includes the pH Electrode Storage solution. The pH electrode should be properly stored in its electrode storage solution. With proper care and storage, this electrode will have a 2-3 year lifespan beginning with first use. Vinmetrica Troubleshooting Guide
pH indicator strips in the range of 1-14 pH. Use these wide range strips for general determination of the pH, or to reduce the range before using a narrow range pH testing strip. Sold in a bag of 50 strips, with a color reference chart on the front of the bag.
You asked for it, you got it. Vinmetrica took their best accessories and combined them with the SC-300 SO2 and pH/TA Wine analyzer to improve on one of the best total wine analysis kits out there! The Vinmetrica SC-300 SO2 and pH/TA analyzer has been paired up with the following accessories: The Lab Support Stand Vinmetrica Electrode Holder The Double Burette Clamp Magnetic Stirrer Rinse Bottle A Small Tube of Burette Detergent 25 mL Glass Burette. Now you can measure SO2 and pH/TA quickly and easily so you can focus on what matters, making high quality wines! One lean, mean wine analyzing machine. The SC-300 combines the SO2 detection of the SC-100A and the pH/TA analysis of the SC-200 into one power-packed instrument. It’s built on the same hardware and software as our other two analyzers, so the accuracy is superb. And it’s just as easy to use – The audible buzzer and visual stop light will automatically let you know when you’re tests are done! Because it does not rely on a color change, the SC-300 eliminates the guesswork in Ripper sulfite tests, especially in red wines! Why Choose Vinmetrica’s SC-300? Where else will you find a single, compact instrument that can measure sulfite (SO2), pH and TA (Titratable Acidity) levels throughout the fermentation and aging process? Even in Red Wines! It’s Accurate: SO2: ± 2 ppm Free SO2. TA: ± 0.2 g/L Tartaric acid pH: better than ± 0.02 pH units Quick! – Less than 2 minutes per test! Affordable – About a $1 per test!* Easy to Use – No mystery solutions, pumps or tubing. *SO2 (Sulfite) Tests cost approximately 70¢ / Test (the cost of the reagents per test). If you do a combined pH and TA analysis, the cost of reagents for the pH/TA test is approximately $1.12 / Test. Complete Wine Testing Kit – Includes Everything Needed to Analyze Sulfite (SO2), pH and TA (Titratable Acidity) levels in Your Wines & Musts: SO2 reagents pH/TA reagents Two titration beakers Two 5 mL syringes Two transfer pipettes SO2 electrode pH electrode 25 mL sampling pipette (for SO2) 5 mL sampling pipette (for pH/TA) The SC-300 Operating Manual The SC-300 analyzer gives accurate SO2, pH and TA values. Kit includes everything to perform about 50 sulfite tests and 30 TA tests: both electrodes, all reagents, pipettes, syringe and beaker. A Quick Overview – Wine Analysis Procedures with the SC-300: Easy SO2 Test Attach SO2 electrode, press the power button, change to SO2 mode and press enter. Draw up 5 mL of titrant into the syringe and place 25 mL of wine in beaker. Add ~2 mL of the acidifier and ~2 mL of the reactant to wine. Place and hold the SO2 electrode in the wine sample and swirl beaker. Add titrant from syringe dropwise until 15 second long endpoint signal reached. Multiply the titration volume by 20, the SO2 conversion factor, results in ppm Free SO2. Simple pH Test Attach the pH electrode, set aside storage solution, rinse with DI water and blot gently with a paper towel. Press the power button then press the ‘Mode’ button and switch the SC-200 into ‘Cal’ mode. Calibrate using the pH 4 and pH 7 reference standards provided. Put the SC-200 in pH mode. Take 5 mL sample of wine, place in a beaker. Take a pH reading. Accurate TA Test For TA test, withdraw 5 mL of the TA Titrant with the syringe. Take 5 mL wine sample and add ~15 mL of deionized water. Put SC-200 into TA mode, place clean pH electrode gently in solution. Add TA Titrant from the syringe dropwise until the endpoint is reached indicated with the visual and audible signals. Record the volume (in mL) of titrant used. Multiply the titrantion volume by 2, the TA conversion factor, results in g/L Tartaric Acid. Vinmetrica Troubleshooting Guide
pH indicator strips in the range of 2.8 - 4.4 pH, the ranges typically seen in winemaking. The vial contains 100 strips, and a color reference chart for determining the pH on the outside of the vial.
.30M KCl (potassium chloride) solution for refillable pH/ORP electrodes. Fresh electrolyte solution ensures accurate calibration and measurement with your pH meter. For best results, electrolyte should be replenished or completely replaced every 3-6 months.
To Use:
Wearing Gloves, Drain existing electrolyte solution from the electrode by shaking upside down over the sink. You may need to use the tip of a small pipette or a syringe to break the surface tension of the liquid. Using the same pipette or syringe, replace the solution you just drained with a fresh lot from the bottle.
Store capped and refrigerated and out of the reach of children.
The Ultimate Winemaker’s Companion! Includes everything you need to analyze SO2, pH, and TA in one kit Tests take less than 2 minutes to perform and are incredibly accurate with pH readings to 1/100 of a point Combines the SO2 detection of the SC-100A and the pH/TA analysis of the SC-200 into one compact instrument Audible buzzer and indicator light alert you to when the test is complete Affordable wine analysis averaging roughly $1 per test One lean, mean wine analyzing machine. The SC-300 combines the SO2 detection of the SC-100A and the pH/TA analysis of the SC-200 into one power-packed instrument. It’s built on the same hardware and software as our other two analyzers, so the accuracy is superb. And it’s just as easy to use – The audible buzzer and visual stop light will automatically let you know when you’re tests are done! Because it does not rely on a color change, the SC-300 eliminates the guesswork in Ripper sulfite tests, especially in red wines! Why Choose Vinmetrica’s SC-300? Where else will you find a single, compact instrument that can measure sulfite (SO2), pH and TA (Titratable Acidity) levels throughout the fermentation and aging process? Even in Red Wines! It’s Accurate: SO2: ± 2 ppm Free SO2. TA: ± 0.2 g/L Tartaric acid pH: better than ± 0.02 pH units Quick! – Less than 2 minutes per test! Affordable – About a $1 per test!* Easy to Use – No mystery solutions, pumps or tubing. *SO2 (Sulfite) Tests cost approximately 70¢ / Test (the cost of the reagents per test). If you do a combined pH and TA analysis, the cost of reagents for the pH/TA test is approximately $1.12 / Test. Complete Wine Testing Kit – Includes Everything Needed to Analyze Sulfite (SO2), pH and TA (Titratable Acidity) levels in Your Wines & Musts: SO2 reagents pH/TA reagents Two titration beakers Two 5 mL syringes Two transfer pipettes SO2 electrode pH electrode 25 mL sampling pipette (for SO2) 5 mL sampling pipette (for pH/TA) The SC-300 Operating Manual The SC-300 analyzer gives accurate SO2, pH and TA values. Kit includes everything to perform about 50 sulfite tests and 30 TA tests: both electrodes, all reagents, pipettes, syringe and beaker. A Quick Overview – Wine Analysis Procedures with the SC-300: Easy SO2 Test Attach SO2 electrode, press the power button, change to SO2 mode and press enter. Draw up 5 mL of titrant into the syringe and place 25 mL of wine in beaker. Add ~2 mL of the acidifier and ~2 mL of the reactant to wine. Place and hold the SO2 electrode in the wine sample and swirl beaker. Add titrant from syringe dropwise until 15 second long endpoint signal reached. Multiply the titration volume by 20, the SO2 conversion factor, results in ppm Free SO2. Simple pH Test Attach the pH electrode, set aside storage solution, rinse with DI water and blot gently with a paper towel. Press the power button then press the ‘Mode’ button and switch the SC-200 into ‘Cal’ mode. Calibrate using the pH 4 and pH 7 reference standards provided. Put the SC-200 in pH mode. Take 5 mL sample of wine, place in a beaker. Take a pH reading. Accurate TA Test For TA test, withdraw 5 mL of the TA Titrant with the syringe. Take 5 mL wine sample and add ~15 mL of deionized water. Put SC-200 into TA mode, place clean pH electrode gently in solution. Add TA Titrant from the syringe dropwise until the endpoint is reached indicated with the visual and audible signals. Record the volume (in mL) of titrant used. Multiply the titrantion volume by 2, the TA conversion factor, results in g/L Tartaric Acid. Vinmetrica Troubleshooting Guide
The Ultimate Winemaker’s Companion! Includes everything you need to analyze SO2, pH, and TA in one kit Tests take less than 2 minutes to perform and are incredibly accurate with pH readings to 1/100 of a point Combines the SO2 detection of the SC-100A and the pH/TA analysis of the SC-200 into one compact instrument Audible buzzer and indicator light alert you to when the test is complete Affordable wine analysis averaging roughly $1 per test One lean, mean wine analyzing machine. The SC-300 combines the SO2 detection of the SC-100A and the pH/TA analysis of the SC-200 into one power-packed instrument. It’s built on the same hardware and software as our other two analyzers, so the accuracy is superb. And it’s just as easy to use – The audible buzzer and visual stop light will automatically let you know when you’re tests are done! Because it does not rely on a color change, the SC-300 eliminates the guesswork in Ripper sulfite tests, especially in red wines! Why Choose Vinmetrica’s SC-300? Where else will you find a single, compact instrument that can measure sulfite (SO2), pH and TA (Titratable Acidity) levels throughout the fermentation and aging process? Even in Red Wines! It’s Accurate: SO2: ± 2 ppm Free SO2. TA: ± 0.2 g/L Tartaric acid pH: better than ± 0.02 pH units Quick! – Less than 2 minutes per test! Affordable – About a $1 per test!* Easy to Use – No mystery solutions, pumps or tubing. *SO2 (Sulfite) Tests cost approximately 70¢ / Test (the cost of the reagents per test). If you do a combined pH and TA analysis, the cost of reagents for the pH/TA test is approximately $1.12 / Test. Complete Wine Testing Kit – Includes Everything Needed to Analyze Sulfite (SO2), pH and TA (Titratable Acidity) levels in Your Wines & Musts: SO2 reagents pH/TA reagents Two titration beakers Two 5 mL syringes Two transfer pipettes SO2 electrode pH electrode 25 mL sampling pipette (for SO2) 5 mL sampling pipette (for pH/TA) The SC-300 Operating Manual The SC-300 analyzer gives accurate SO2, pH and TA values. Kit includes everything to perform about 50 sulfite tests and 30 TA tests: both electrodes, all reagents, pipettes, syringe and beaker. A Quick Overview – Wine Analysis Procedures with the SC-300: Easy SO2 Test Attach SO2 electrode, press the power button, change to SO2 mode and press enter. Draw up 5 mL of titrant into the syringe and place 25 mL of wine in beaker. Add ~2 mL of the acidifier and ~2 mL of the reactant to wine. Place and hold the SO2 electrode in the wine sample and swirl beaker. Add titrant from syringe dropwise until 15 second long endpoint signal reached. Multiply the titration volume by 20, the SO2 conversion factor, results in ppm Free SO2. Simple pH Test Attach the pH electrode, set aside storage solution, rinse with DI water and blot gently with a paper towel. Press the power button then press the ‘Mode’ button and switch the SC-200 into ‘Cal’ mode. Calibrate using the pH 4 and pH 7 reference standards provided. Put the SC-200 in pH mode. Take 5 mL sample of wine, place in a beaker. Take a pH reading. Accurate TA Test For TA test, withdraw 5 mL of the TA Titrant with the syringe. Take 5 mL wine sample and add ~15 mL of deionized water. Put SC-200 into TA mode, place clean pH electrode gently in solution. Add TA Titrant from the syringe dropwise until the endpoint is reached indicated with the visual and audible signals. Record the volume (in mL) of titrant used. Multiply the titrantion volume by 2, the TA conversion factor, results in g/L Tartaric Acid. Vinmetrica Troubleshooting Guide
The HI1048B is a glass body, refillable, sleeve junction pH electrode with a BNC connector. This electrode features a double junction reference, Hanna's Clogging Prevention System (CPS) technology and spherical glass sensing bulb made with general purpose glass. This pH electrode is ideal for wine must and juice due to their high solids content that would clog a standard general purpose pH electrode.
Clogging Prevention System (CPS™) Technology
Refillable Electrode
Double Junction Design
Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.
The HI1048B uses general purpose (GP) glass, spherical bulb, glass body, sleeve junction with CPS™ technology, double junction and is refillable with 3.5M KCl, making it ideal for wine must, juice, and other samples with a high solids content.
General Purpose Glass Formulation
General Purpose (GP) glass, as the name implies, is a standard glass formulation that is used for general use. A pH electrode with GP glass will have a resistance of 100 megaohms at 25°C and is suited for measuring the pH of samples that are at ambient temperatures. The HI1048B is suitable to use with samples that measure from 0 to 80°C.
Spherical Glass Tip
The spherical shaped tip design allows for a wide area of contact with the measured sample. This permits a faster electrode response with a higher degree of stability.
CPS Sleeve Junction
Clogging Prevention System (CPS) technology is an innovation in for the improvement of pH measurements in samples that have a high solids content. Conventional pH electrodes use ceramic junctions that can clog quickly when used in samples that have a high solids content such as wine must or juice. When the junction is clogged, the electrode does not function. CPS technology utilizes the porousness of ground glass coupled with a PTFE sleeve to prevent clogging of the junction. The ground glass allows the proper flow of the liquid, while the PTFE sleeve repels solids. As a result, pH electrodes with CPS technology take up to 20 times longer to be fouled as compared to conventional electrodes.
Double Junction Reference
A double junction electrode has an internal compartment surrounding the reference wire. Silver ions are present in the electrolyte of the internal compartment, which houses the Ag/AgCl reference wire; the electrolyte outside this compartment is silver free. The double junction design means that virtually no silver from the electrode enters the sample. This design allows measurement in applications where silver ions in the sample are undesirable or for samples that contain sulfides that can cause the silver to precipitates and clog the junction. The clogging of the junction will result in drifty and erratic readings.
Refillable
The HI1048B is a refillable probe. Since it is a double junction pH electrode, the fill solution is the HI7082 3.5M KCl. This solution does not contain any silver as with single junction electrode fill solutions.
Glass Electrode Body
The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature
dependent. The faster the equilibrium the steadier the reference potential.
BNC Connector
The HI1048B has a BNC connector. This type of connector is universal in that it can be used on any pH meter that has a female BNC probe input. Other types of connectors include DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.
Single Junction Versus Double Junction pH Electrodes
Conventional electrodes are normally single junction. As depicted by the figure above, these electrodes have only a single junction between the internal reference wire and the external solution. Under adverse conditions, such as high pressure, high temperature, highly acidic or alkaline solutions, the positive flow of the electrolyte through the junction is often reversed resulting in the ingress of sample solution into the reference compartment. If this is left unchecked, the reference electrode can become contaminated, leading to complete electrode failure. Another potential problem with single junction electrodes is the clogging of the junction due to silver chloride (AgCl) precipitation. Silver can be easily precipitate in samples that contain Tris buffer or heavy metals. When the electrolyte solution makes contact with the sample, some AgCl will precipitate on the external face of the junction. The result is drifty readings obtained from the sensor.
Hanna’s double junction system, as the name implies, has two junctions, only one of which is in contact with the sample as shown in the figure. Under adverse conditions, the same tendency of sample ingress is evident. However, as the reference electrode system is separated physically from the intermediate electrolyte area, the contamination of the electrode is minimized. The likelihood of clogging of the junction is also reduced with a double junction electrode since the outer reference cell uses a fill solution that is “silver-free”. Since there is no silver present, there is no precipitate forming to clog the junction.
Able to measure samples 0-80C
Glass body, refillable sleeve junction
pH electrode with a BNC connector and a 0.5m cable
Clogging Prevention System (CPS) Technology
Refillable Electrode
Double Junction Design
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid May.
The BrewLab Basic® water testing kit, model 7189-02, for home brewers quantifies 7 important water test factors. Experts agree water conditions affect your final product, so take the mystery out of making great beer.
Looking for a digital pH test? Check out the BrewLab® Plus!
Trust LaMotte, the water analysis experts since 1919, to help you control your most important ingredient - water!
Visit HomeBrewFinds.com for a hands-on review of the LaMotte BrewLab water test kit.
For more information on water and its role in the brewing process, check out Water, A Comprehensive Guide for Brewers written by John Palmer and MoreBeer!'s own Colin Kaminski. For help with water adjustments, download Palmer's Brewing Water Adjustment App, currently available for iOS devices and coming soon to Android.
The eXact iDip® Professional Test Kit is the latest generation test kit that combines two state of the art water quality test instruments. The first is the revolutionary Level 1 NSF/ANSI-50 Certified eXact iDip® Smart Photometer System® which integrates patented 2–way wireless communication with any compatible iOS or Android smart device and has the potential to test over 40 water parameters. The second is the NEW eXact® pH+ Meter system which capitalizes on electrochemistry technology combined with Bluetooth connectivity.
Preconfigured kit comes with exactly what's needed to start testing (excluding app software). Packed in a rugged and durable plastic case with secure fasteners and padded compartments. Compatible with iPhone, iPad, and iPod touch with the minimum iOS system version 9.0 and Android version 5.0 with Bluetooth® 4.0.
Details:
Standard navy blue plastic carrying case w/ Foam includes
eXact iDip® 525 Photometer
Cleaning brush
Instruction manual
25 tests of each
High Range Total Hardness, Calcium Hardness, Total Alkalinity, Chloride III, Sulfate
eXact® pH+ Meter System
pH, TDS, Salinity, Conductivity, and Temperature
Free downloadable app with pre-installed tests: pH, Free Chlorine, Total Chlorine, Total Alkalinity. Additional test parameters will need to be purchased and downloaded in-app at $4.99 each or as a bundle (Smart Brew® Bundle) for $18.99
Due to high demand, this item is currently out of stock. Be the first to receive your items by placing a pre-order today. We will automatically ship this item to you when we receive more in mid May.
The BrewLab Plus® water test kit, model 7188-02, for home brewers quantifies 8 important water test factors. Includes everything in BrewLab Basic kit plus a high quality digital pH meter for monitoring batches from start to finish. Experts agree water conditions affect your final product, so take the mystery out of making great beer.
Trust LaMotte, the water analysis experts since 1919, to help you control your most important ingredient—water!
Visit HomeBrewFinds.com for a hands-on review of the LaMotte BrewLab water test kit.
For more information on water and its role in the brewing process, check out Water, A Comprehensive Guide for Brewers written by John Palmer and MoreBeer!'s own Colin Kaminski. For help with water adjustments, download Palmer's Brewing Water Adjustment App, currently available for iOS devices and coming soon to Android.
See the Documents Tab above for additional information.
This recipe makes a delicious golden sour that is enjoyable on its own or easily customized with your own fruiting
Includes a single addition of Centennial hops
Estimated ABV: 5.3%
Estimated IBUs: 7
Makes 5 gallons of finished beer
Thick fog rolls over a dimly lit stage as the volume from an array of loudspeakers steadily rises. You feel the sonic waves emanating from the sound system pass through you, standing up the hair on the back of your neck. Just as the anticipation becomes too much to bear, the darkness is pierced by a spectrum of beam lights and the bass drops. Your eyes squeeze shut and you cover your ears in a trifling attempt to block out the deafening shrieks of 50,000 rabid fans. But it’s no use. Finally, you unclench your eyes and realize that you're not standing in a sea of concert-goers. And it's you that's cheering at the top of your lungs after taking your first sip of K-POP Kettle Sour.
If you've never brewed a kettle sour before, this is the perfect introductory kit. The process requires some extra equipment and steps compared to a normal brew day, but it's worth it! The end result will be a refreshingly light and easy-drinking beer with a delightful tartness that finishes clean. Check out the recipe sheet below and review the instructions before purchasing, and make sure to add both a yeast pitch and a lactobacillus pitch to your order.
This recipe makes a delicious golden sour that is enjoyable without further alteration, but we highly recommend adding dry hops or fruit to make it your own. You can purchase puree from the add-on options above or you can use your own fresh or frozen fruit. We recommend 1 lb of whole fruit per gallon or 1-2 packages of puree for a 5-gallon batch. Add your chosen fruit when fermentation is complete and allow 5 to 7 days of contact time before packaging.
Makes 5 gallons
Estimated Original Gravity: 1.048-53
SRM (Color Range): 3-4
IBUs: 7
Estimated Alcohol Percentage: 5.3%
Recommended Equipment:
pH meter
Electric heating wrap
CO2 tank
Plastic wrap
Our recipe kits DO NOT include grain bags, yeast or priming sugar. To find our yeast recommendations, choose your preferred kit option above and then select the drop-down menu under “Yeast Options”. For more info, click on the recommended yeast(s) in the “You Might Also Need” section below. All included steeping grains will come milled.
Liquid Malt Extract (LME) vs. Dried Malt Extract (DME)
MoreBeer! recipe kits are offered in both Liquid Malt Extract and Dry Malt Extract so that our customers can choose the format that best suits their needs and brewing style. LME is a viscous liquid, similar in consistency to maple syrup. In addition to being the more affordable option, many brewers find LME easier to handle than dry extract. DME is more condensed and comes in a powder format that is similar to baking flour. Although it’s a little more costly, DME is naturally lighter in color and stays fresher for longer. We highly recommend DME when brewing light colored beers.
Contains refill bottles of each test for quick ordering.
Box includes 1 bottle each of:
Total Alkalinity(100 tests)
pH (100 tests)
HR Total Hardness (50 tests)
Calcium Hardness (50 tests)
Chloride (25 tests)
Sulfate (50 tests).
The Smart Brew® Starter Kit comes prefigured with exactly what's needed to start testing your water for the perfect brew! Each kit includes the eXact iDip® 525 photometer with the following eXact® Strips: Total Hardness, Calcium Hardness, Total Alkalinity, pH, Chloride, and Sulfate. Each kit is packed in a rugged and durable plastic case with secure fasteners and padded compartments. The eXact iDip® app is available to download for Free on Apple App Store and on Google Play app store on Android. Compatible with iPhone, iPad, and iPod touch with the minimum iOS system version 9.0 and Android version 5.0 with Bluetooth® 4.0.
Details:
Standard navy blue plastic carrying case w/ Foam includes
eXact iDip® 525 Photometer
Cleaning brush
Instruction manual
25 tests of each
pH-II, High Range Total Hardness, Calcium Hardness, Total Alkalinity, Chloride III, Sulfate
Free downloadable app with pre-installed tests: pH, Free Chlorine, Total Chlorine, Total Alkalinity. Additional test parameters will need to be purchased and downloaded in-app at $4.99 each or as a bundle (Smart Brew® Bundle) for $18.99
This recipe makes a delicious golden sour that is enjoyable on its own or easily customized with your own fruiting
Includes a single addition of Centennial hops
Estimated ABV: 5.3%
Estimated IBUs: 7
Makes 5 gallons of finished beer
Thick fog rolls over a dimly lit stage as the volume from an array of loudspeakers steadily rises. You feel the sonic waves emanating from the sound system pass through you, standing up the hair on the back of your neck. Just as the anticipation becomes too much to bear, the darkness is pierced by a spectrum of beam lights and the bass drops. Your eyes squeeze shut and you cover your ears in a trifling attempt to block out the deafening shrieks of 50,000 rabid fans. But it’s no use. Finally, you unclench your eyes and realize that you're not standing in a sea of concert-goers. And it's you that's cheering at the top of your lungs after taking your first sip of K-POP Kettle Sour.
If you've never brewed a kettle sour before, this is the perfect introductory kit. The process requires some extra equipment and steps compared to a normal brew day, but it's worth it! The end result will be a refreshingly light and easy-drinking beer with a delightful tartness that finishes clean. Check out the recipe sheet below and review the instructions before purchasing, and make sure to add both a yeast pitch and a lactobacillus pitch to your order.
This recipe makes a delicious golden sour that is enjoyable without further alteration, but we highly recommend adding dry hops or fruit to make it your own. You can purchase puree from the add-on options above or you can use your own fresh or frozen fruit. We recommend 1 lb of whole fruit per gallon or 1-2 packages of puree for a 5-gallon batch. Add your chosen fruit when fermentation is complete and allow 5 to 7 days of contact time before packaging.
Makes 5 gallons
Estimated Original Gravity: 1.048-53
SRM (Color Range): 3-4
IBUs: 7
Estimated Alcohol Percentage: 5.3%
Recommended Equipment:
pH meter
Electric heating wrap
CO2 tank
Plastic wrap
Our recipe kits DO NOT include grain bags, yeast or priming sugar. To find our yeast recommendations, choose your preferred kit option above and then select the drop-down menu under “Yeast Options”. For more info, click on the recommended yeast(s) in the “You Might Also Need” section below. All included steeping grains will come milled.

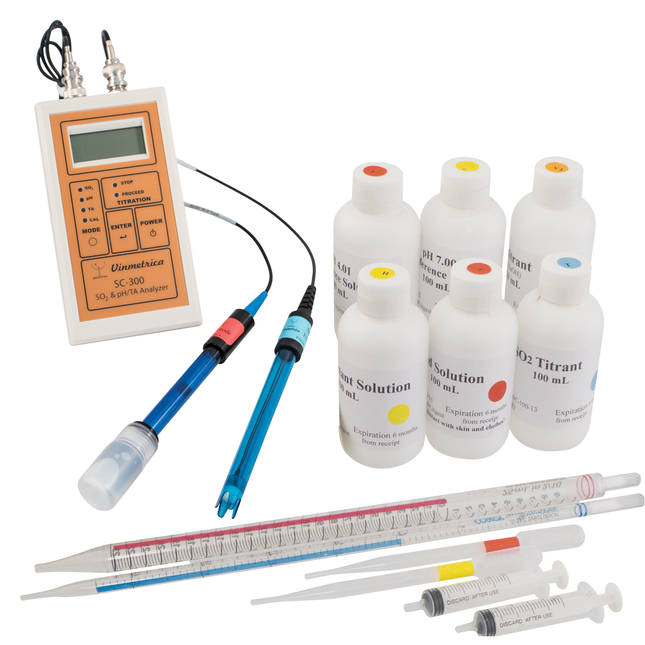

Used in conjuction with the pH function of either your SC-200 or SC-300 Analyzer, the Yeast Assimilable Nitrogen (YAN) test from Vinmetrica measures the combination of amino acids, ammonium ions, and small peptides. YAN is important as it can contribute to sluggish fermentations and off flavors in your wine.
Specifications:
Measures down to 20 mg/L of available nitrogen with accuracy of 10 mg/L of available nitrogen.
Enough for 25 tests (only $1.28 per test!)
1 year shelf life
Includes:
YAN Reagent (37% Formaldehyde/15% methanol, Part Number SC-200-14-1)
YAN Formaldehyde Neutralizer Powder (Sulfite, Part Number SC-200-14-2)
Three Plastic Transfer Pipettes (SC-100-5)
